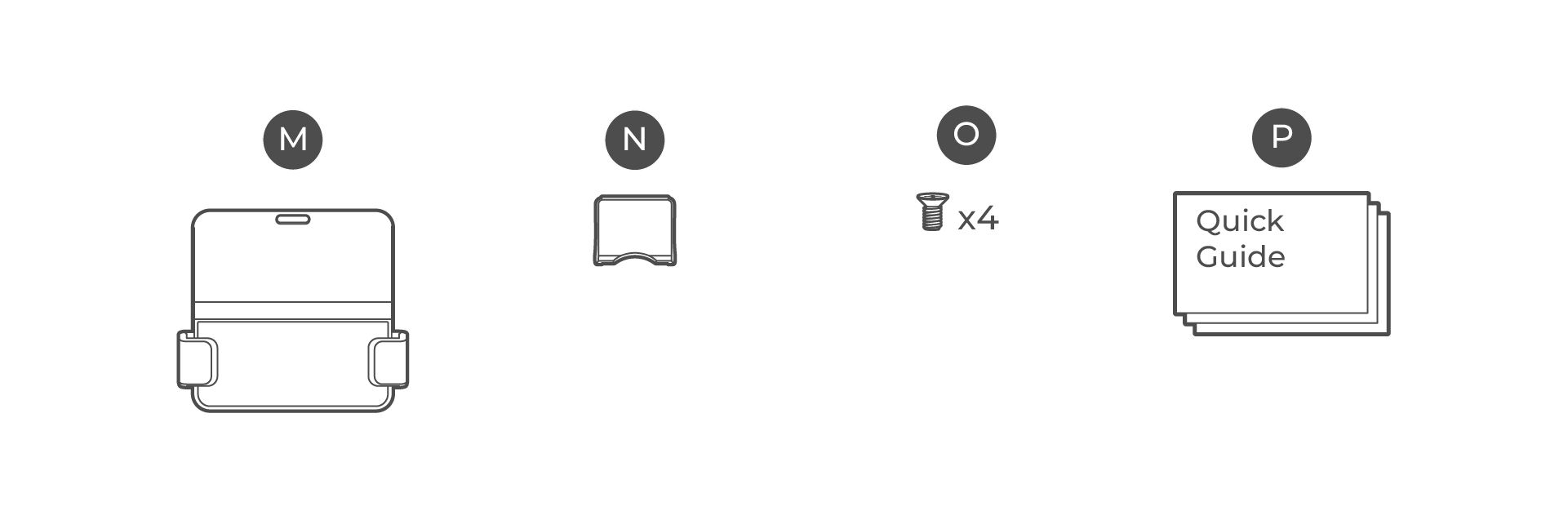

M. VESA adapter SCS01F｜N. Tilt lock｜O. VESA bracket screws × 4｜P. User documents

Illustration of package contents

Illustration of package contents

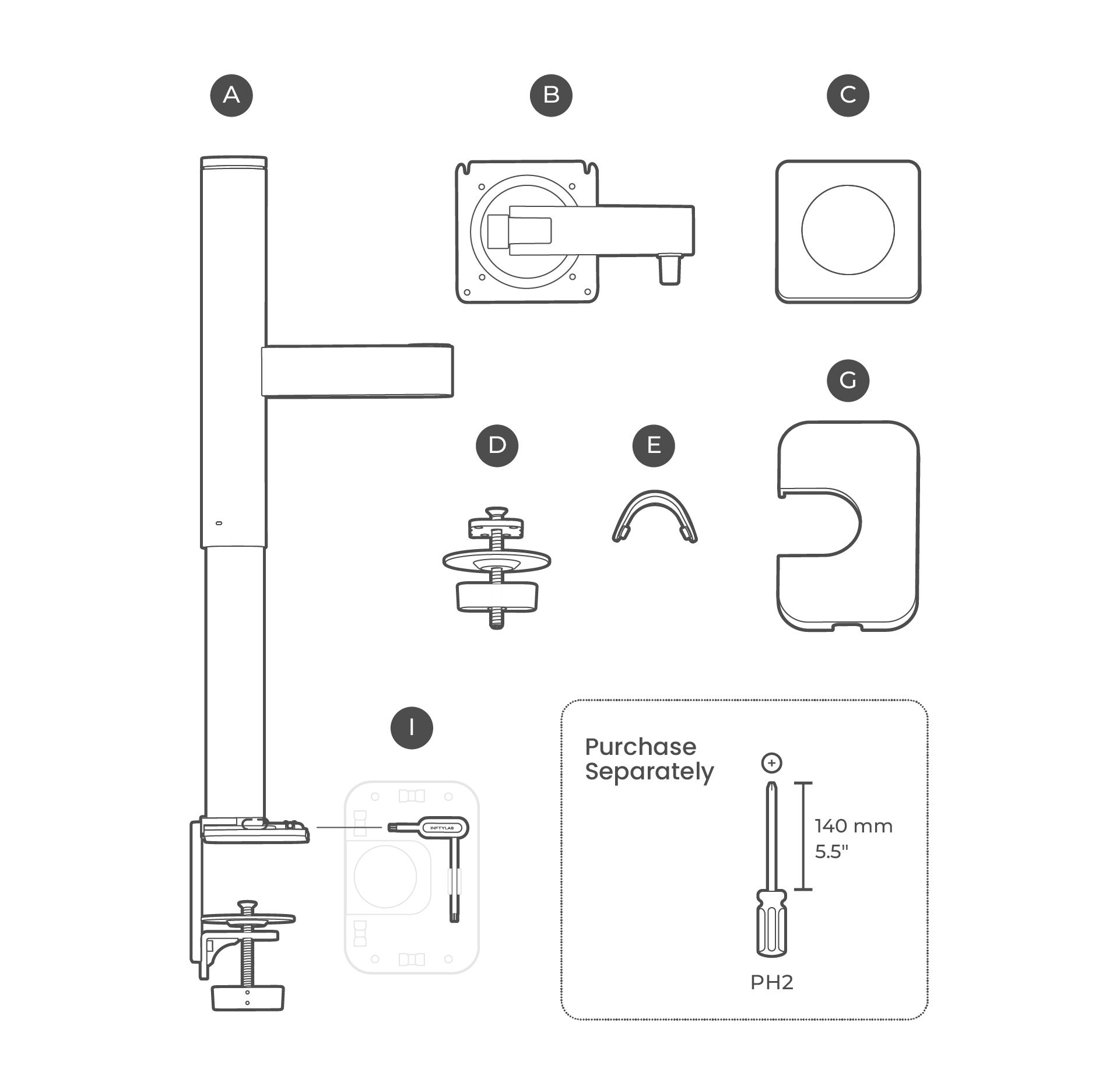

The following items are included in the Studio Arm package.

A. Arm assembly (clamp assembly pre-installed)｜B. Upper arm｜C. VESA cover｜D. Grommet assembly｜E. Cable clip｜G. Base cover｜I. 4 mm hex key

Illustration of package contents

Illustration of package contents

Safety

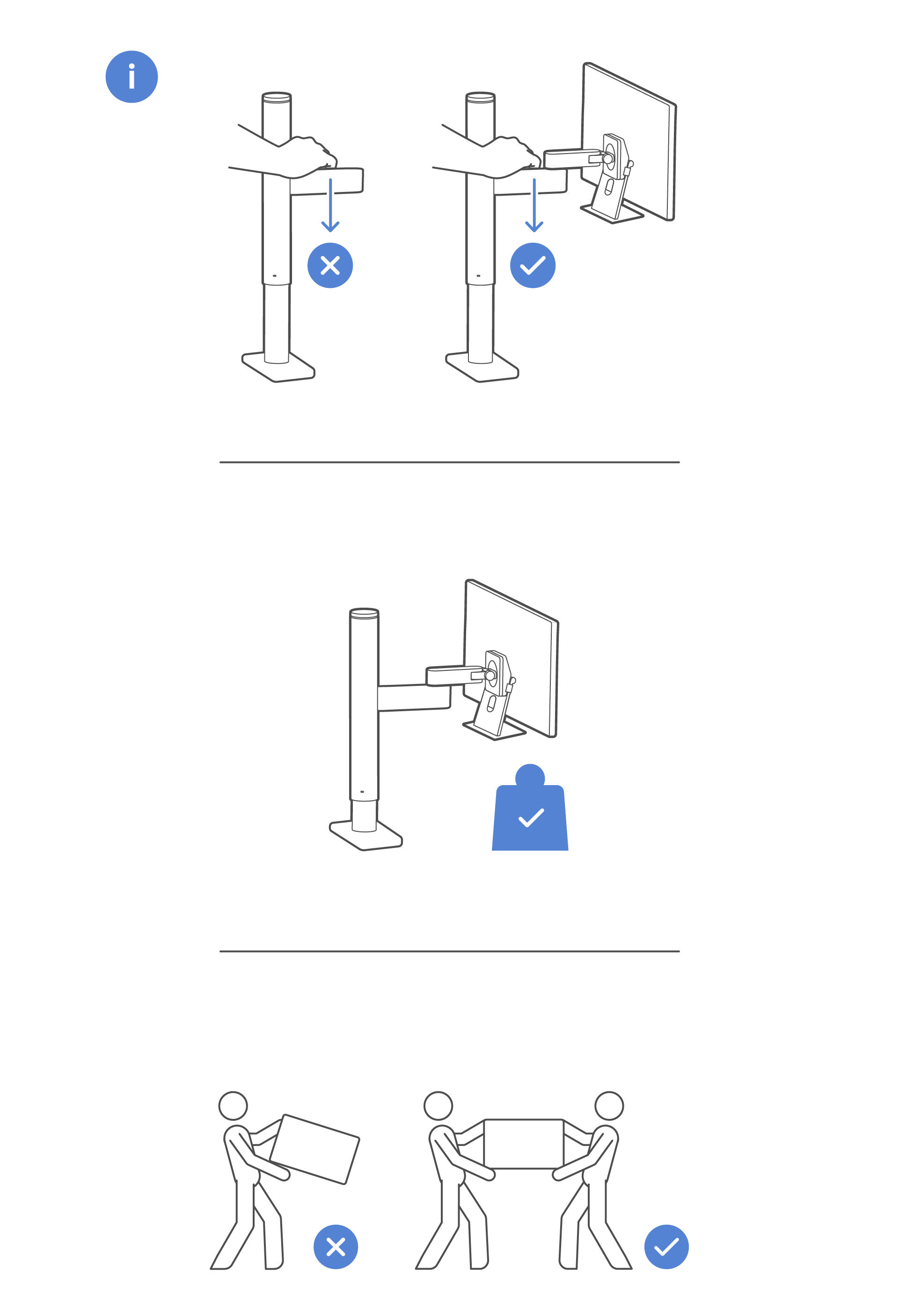

1.Attach your display before lowering the arm.

2.Weight Capacity: AM01 8.00 - 8.60kg (17.64 - 18.96 lbs) AM02 5.10 - 5.70kg (11.24 - 12.57 lbs)

3.Have a second person help.

Illustration of package contents

Illustration of package contents

Content

Step 1. Choose A.Clamp or B.Grommet

Step 2. Attach the VESA adapter

Step 3. Mount your display

Step 4. Switch the dial to "Stand"

Step 5. Manage cables

Step 1. Choose A.Clamp or B.Grommet

A. Clamp

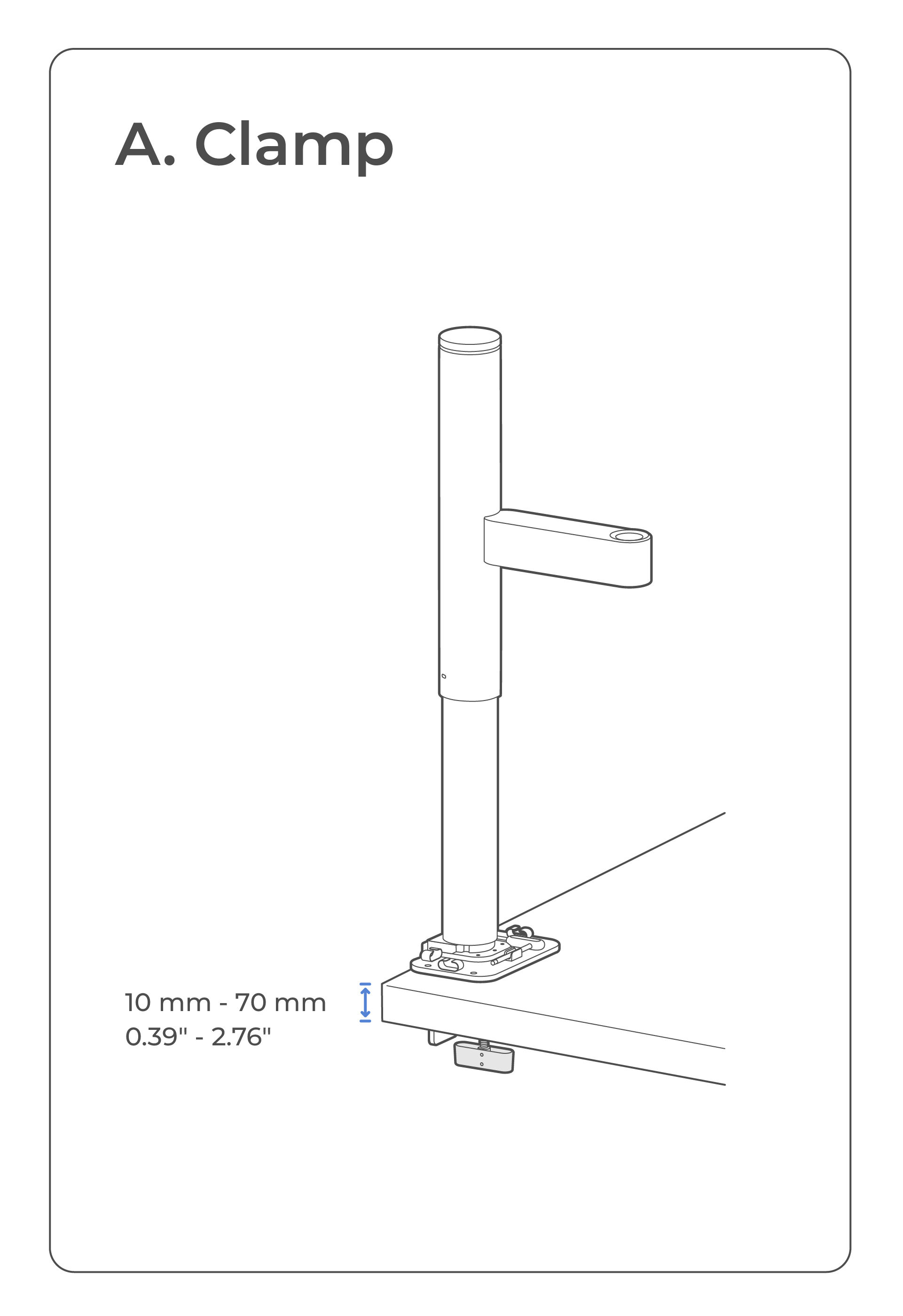

Clamp mounting environment.

Clamp mounting environment.

A1.

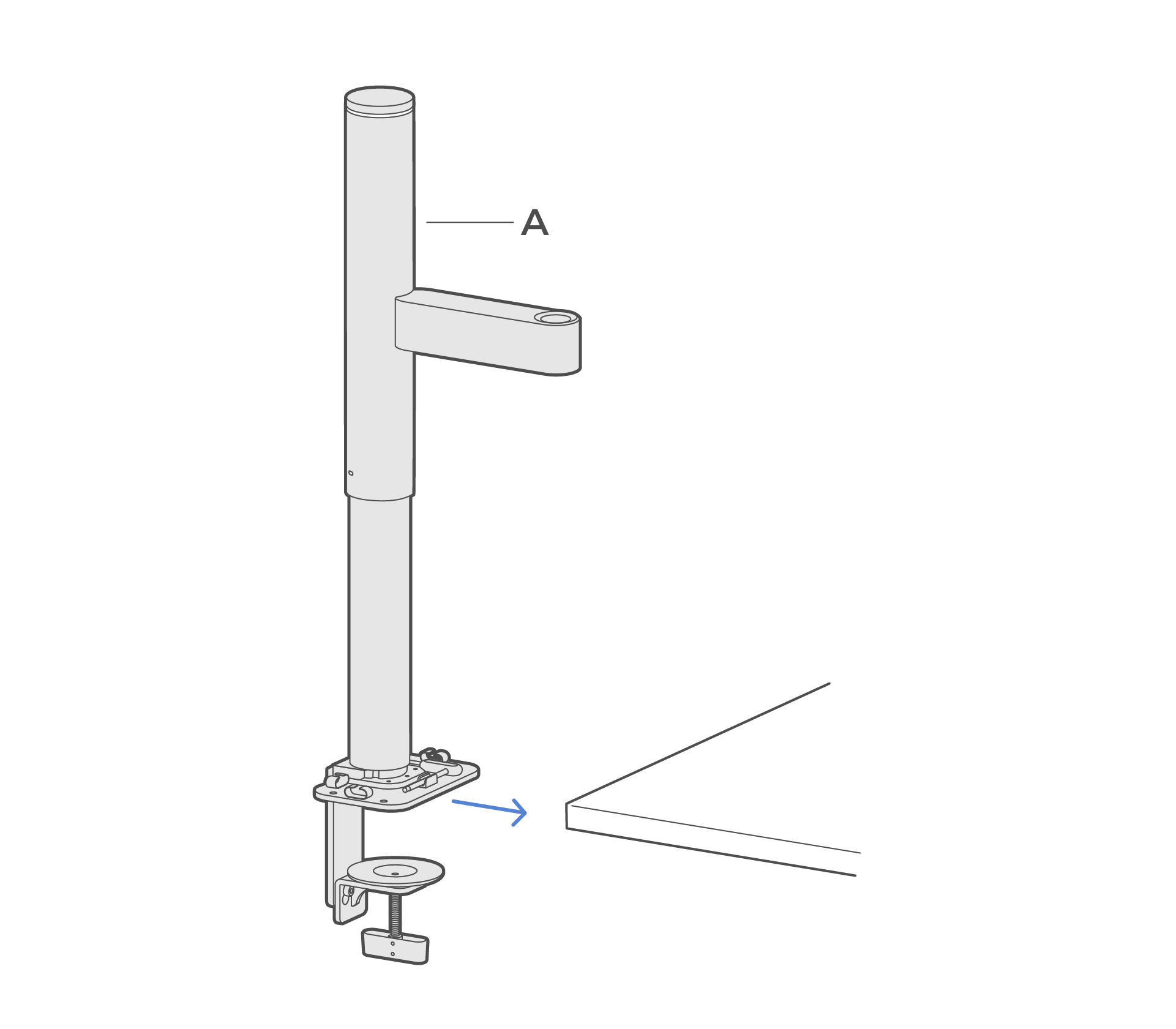

Slide the arm assembly (A) onto the edge of your desk.

Slide the arm assembly (A) onto the edge of your desk.

A2.

Skip to Step 2

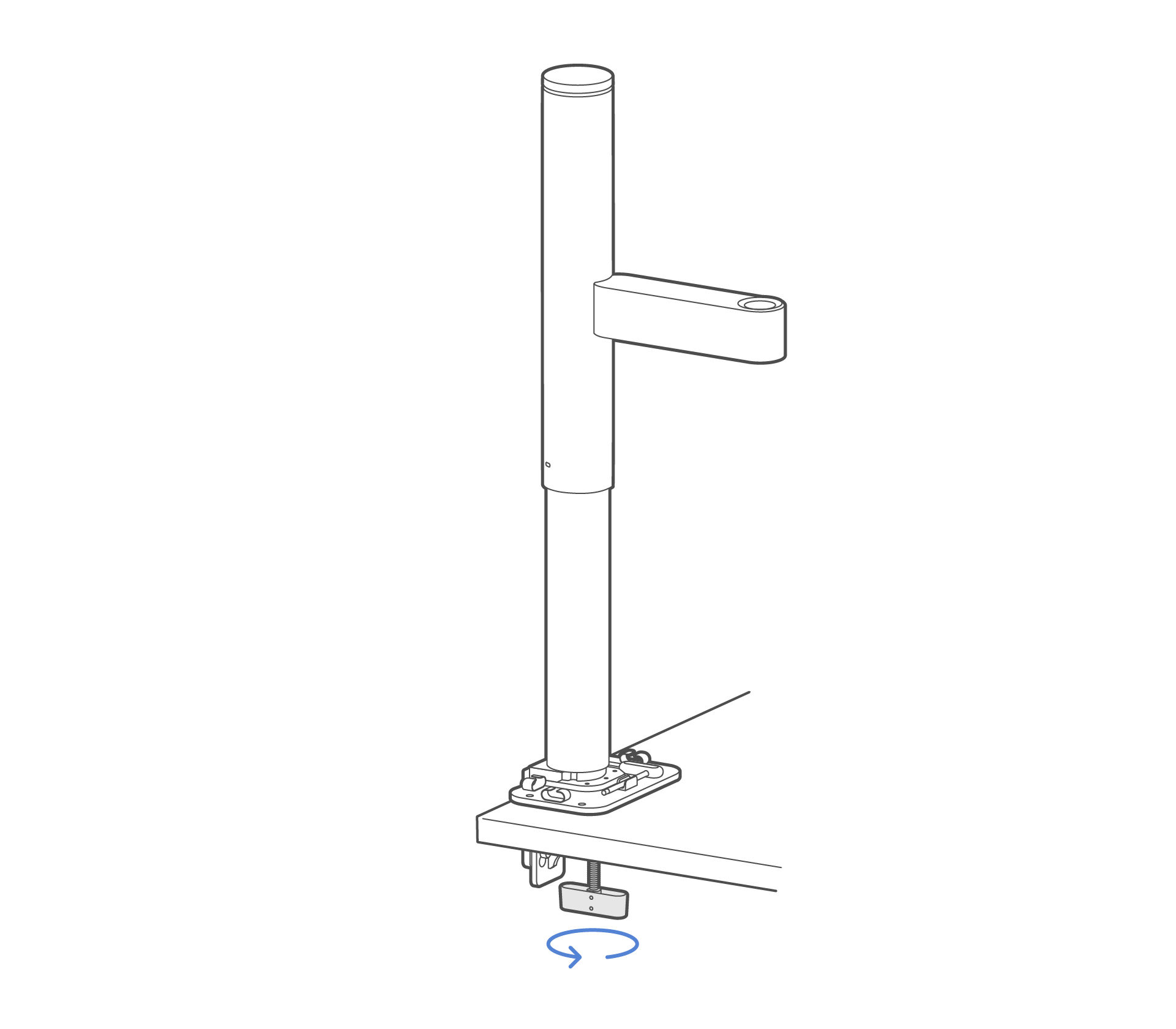

Turn the mounting knob counterclockwise to secure it.

Turn the mounting knob counterclockwise to secure it.

B. Grommet

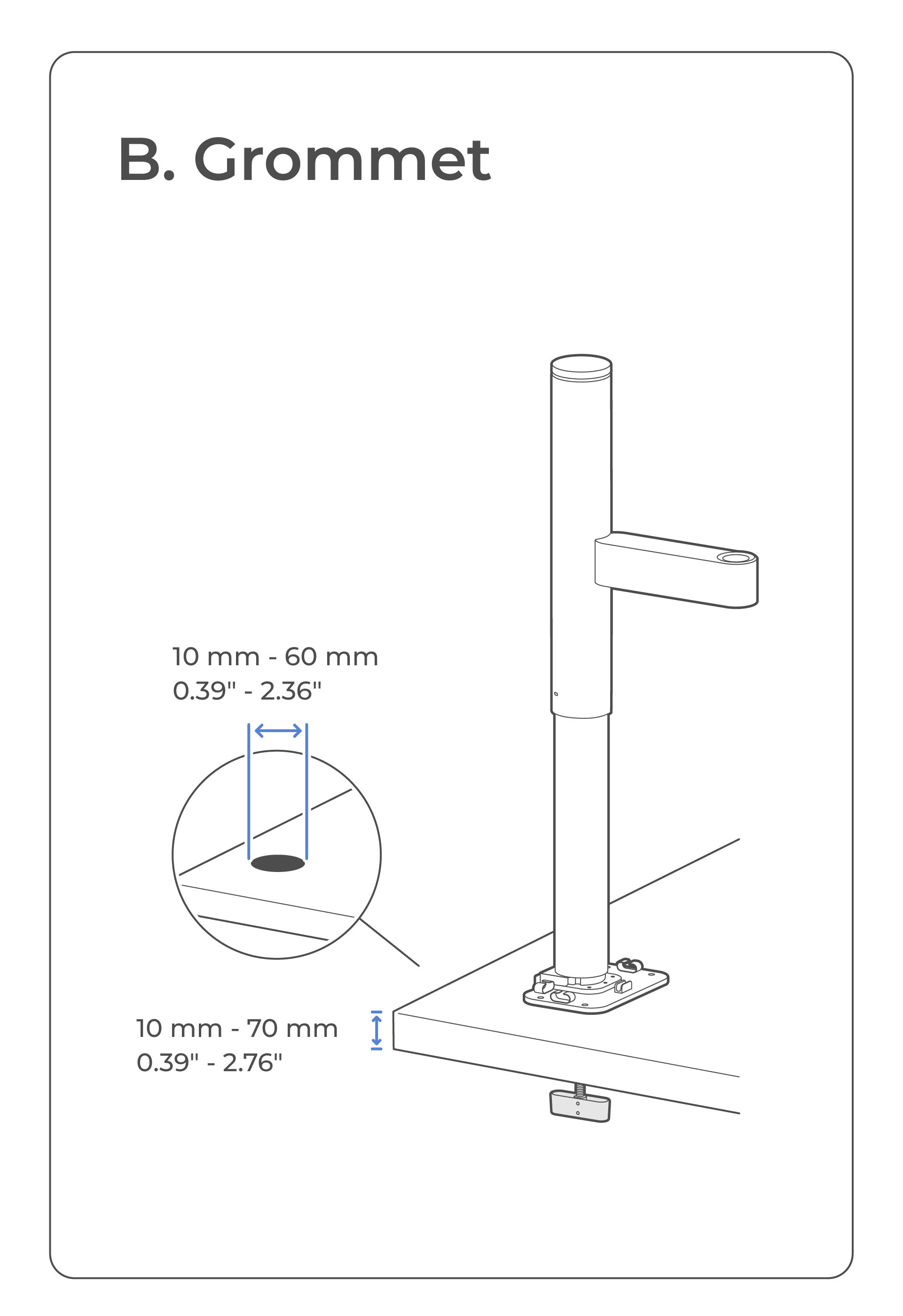

Grommet mounting environment.

Grommet mounting environment.

B1.

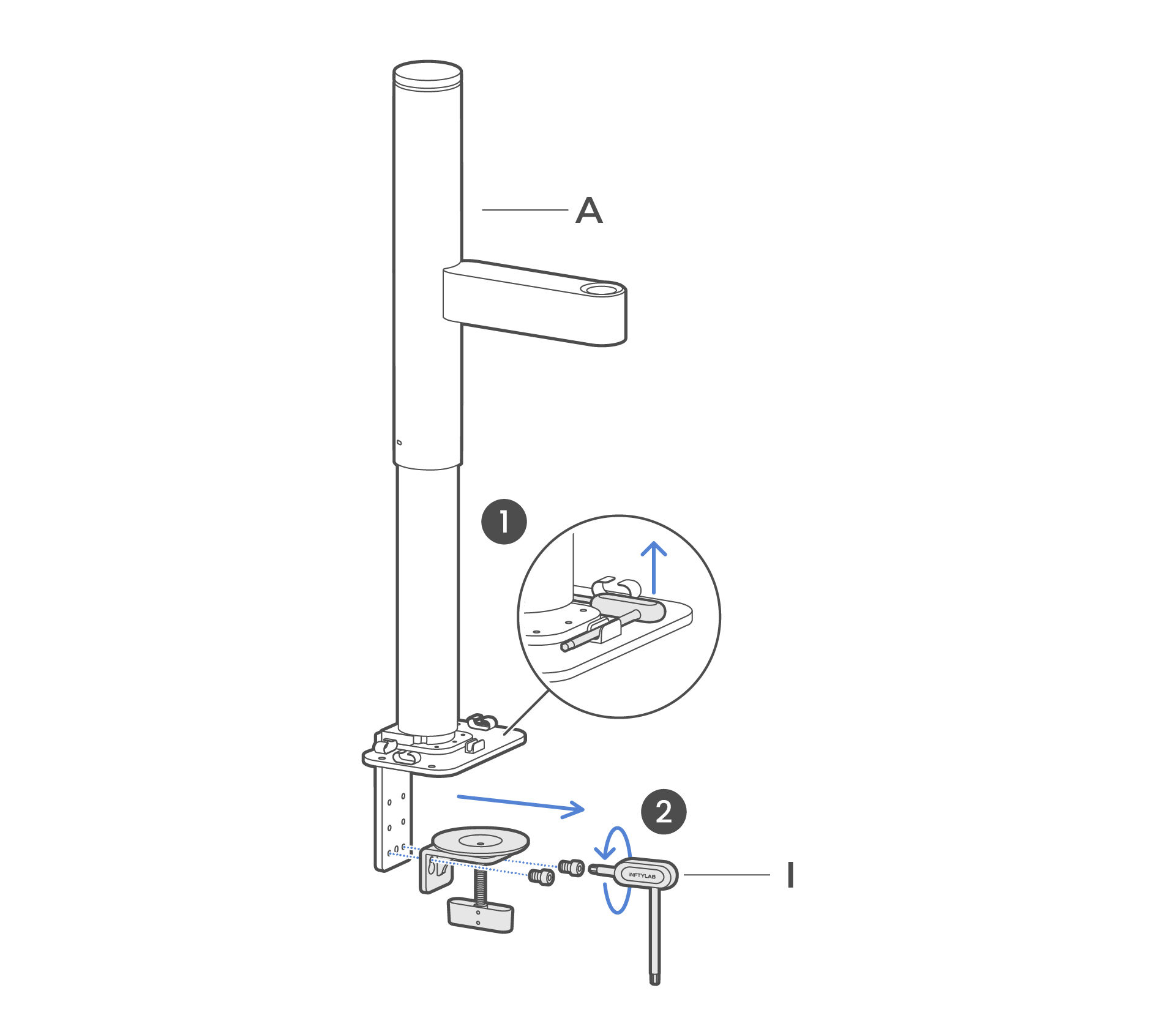

Use the 4 mm hex key to remove the clamp assembly from the lower bracket.

Use the 4 mm hex key to remove the clamp assembly from the lower bracket.

B2.

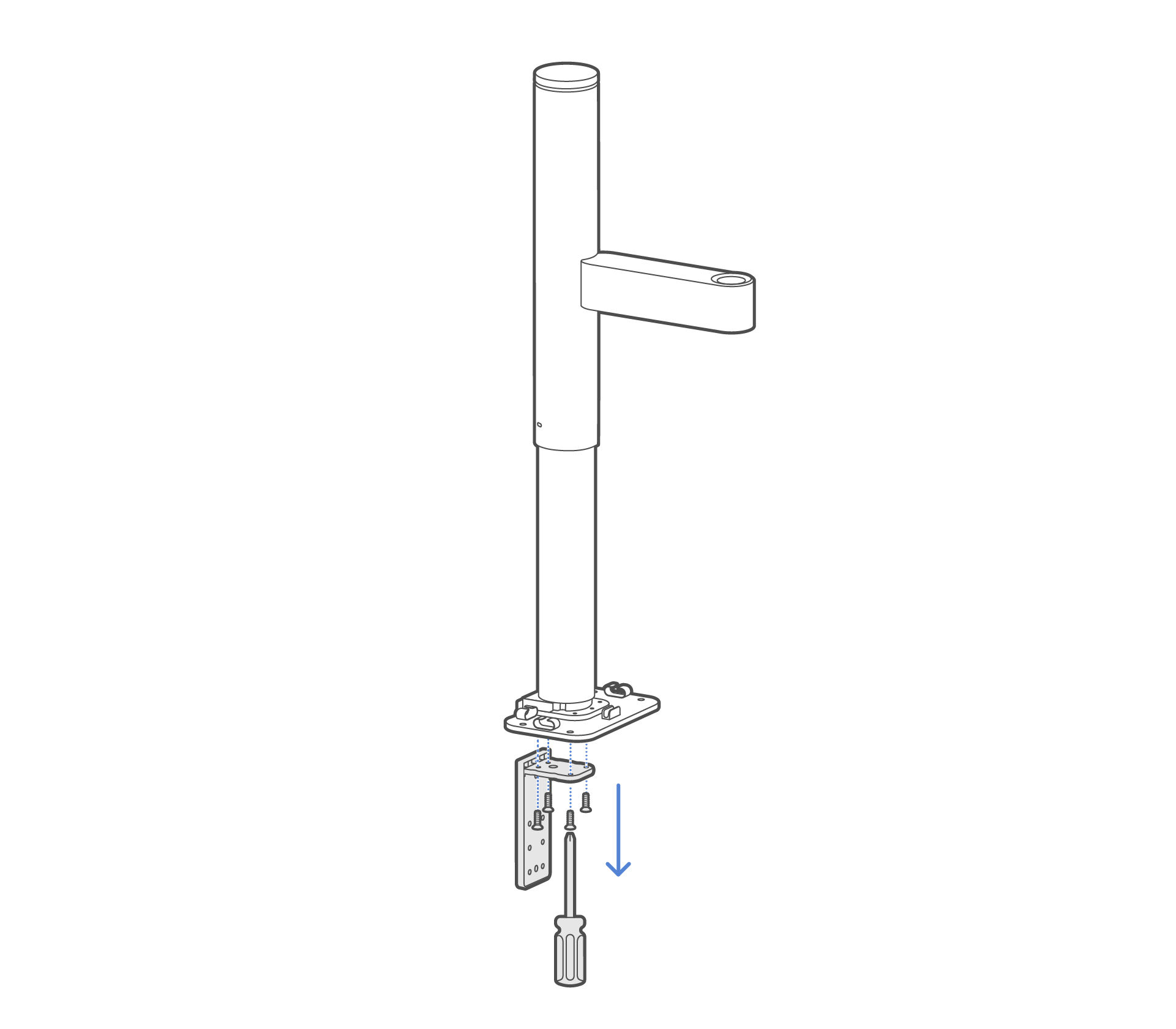

Detach the lower bracket from the bottom of the main pole.

Detach the lower bracket from the bottom of the main pole.

B3.

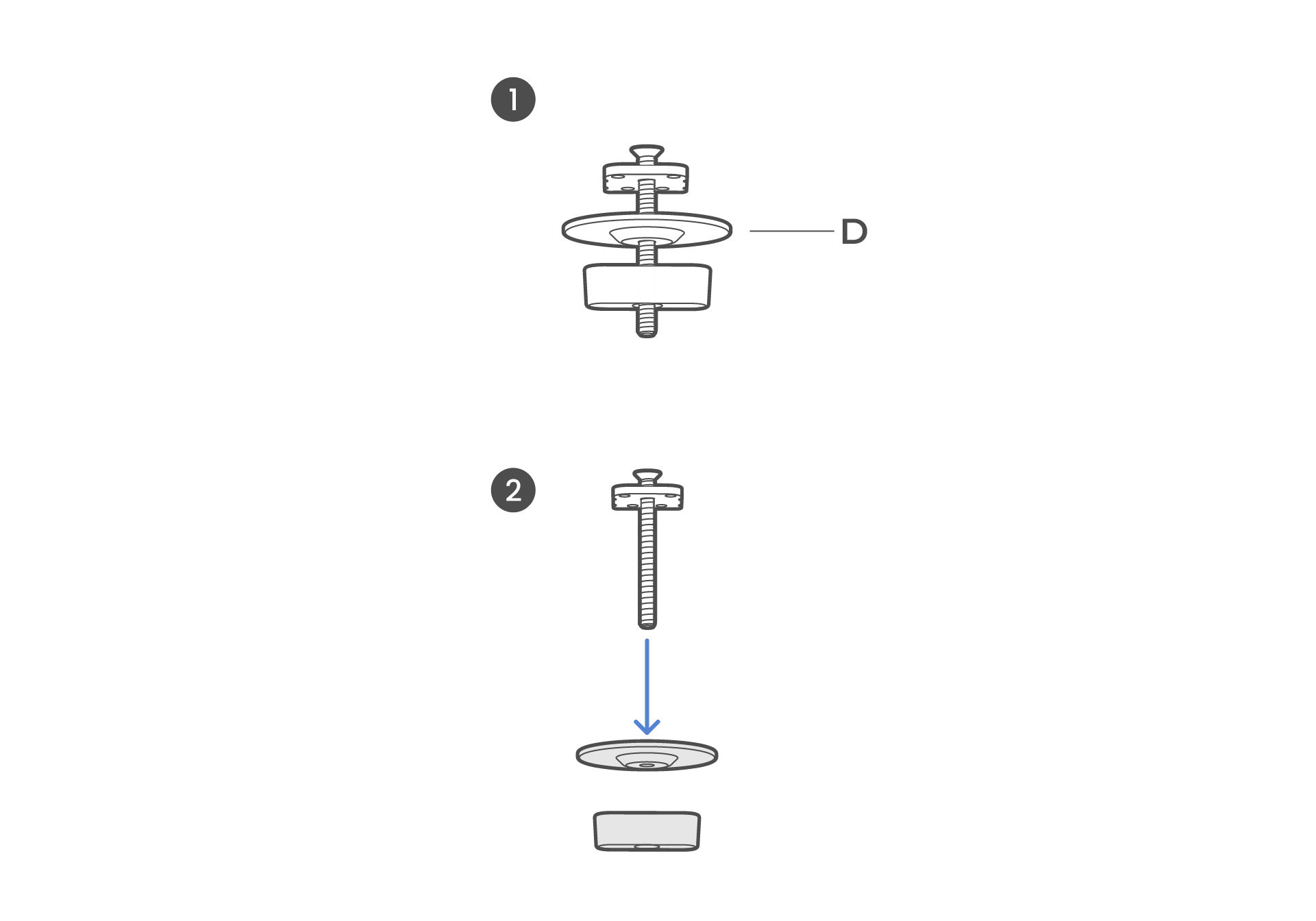

Separate the grommet bolt from the grommet assembly.

Separate the grommet bolt from the grommet assembly.

B4.

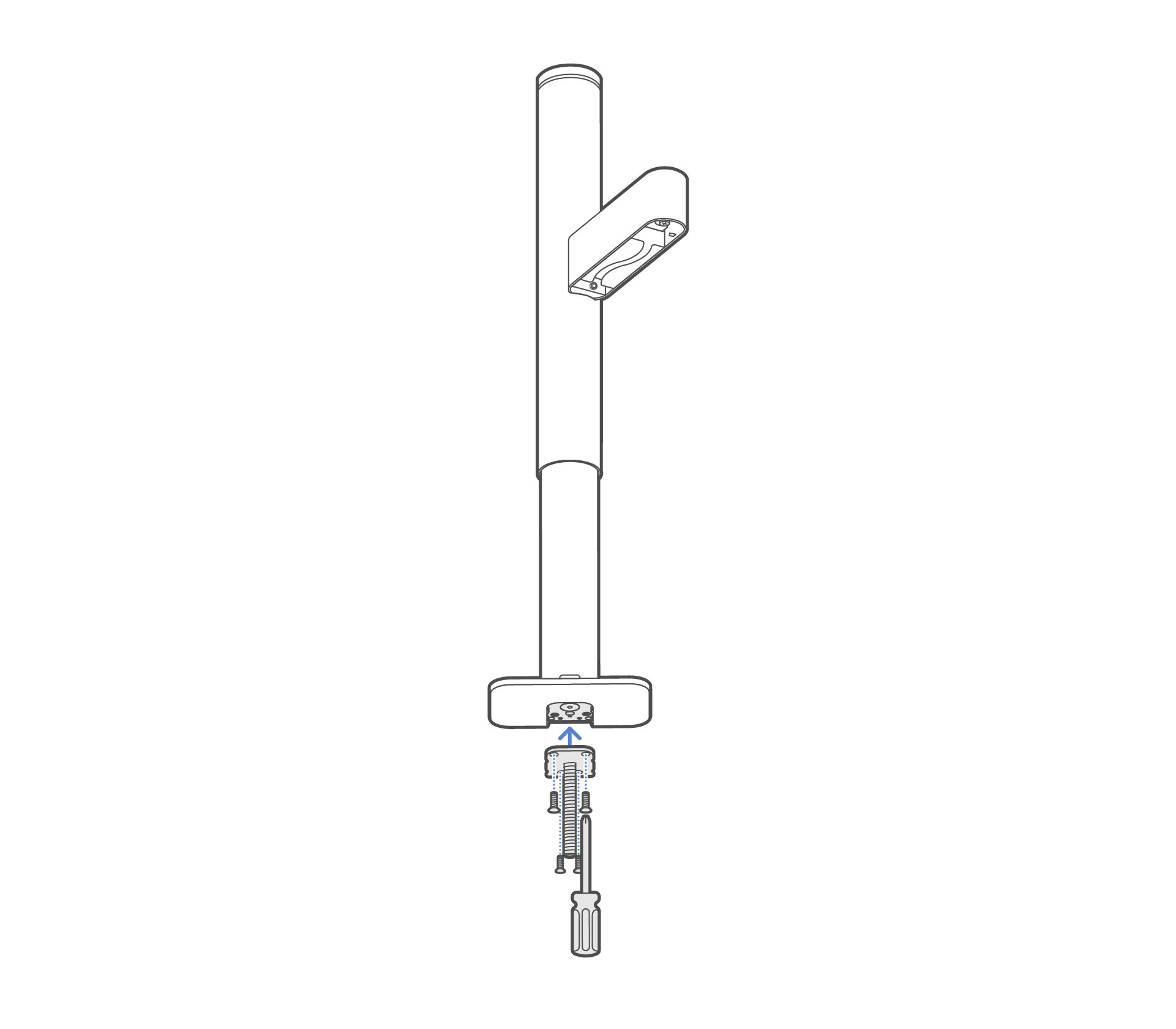

Secure the grommet bolt to the bottom of the base using the screws.

Secure the grommet bolt to the bottom of the base using the screws.

B5.

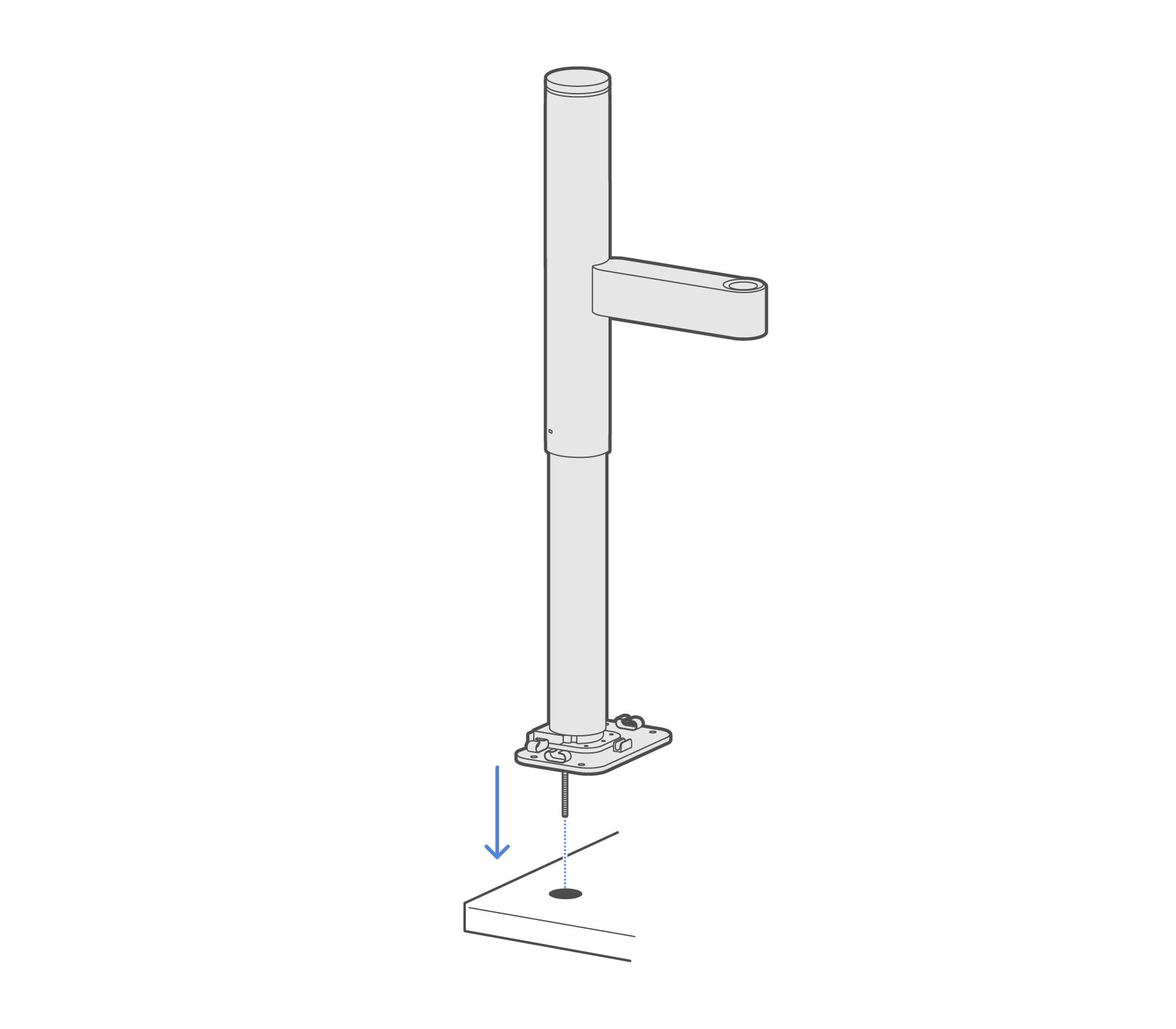

Lower the base over the desk hole.

Lower the base over the desk hole.

B6.

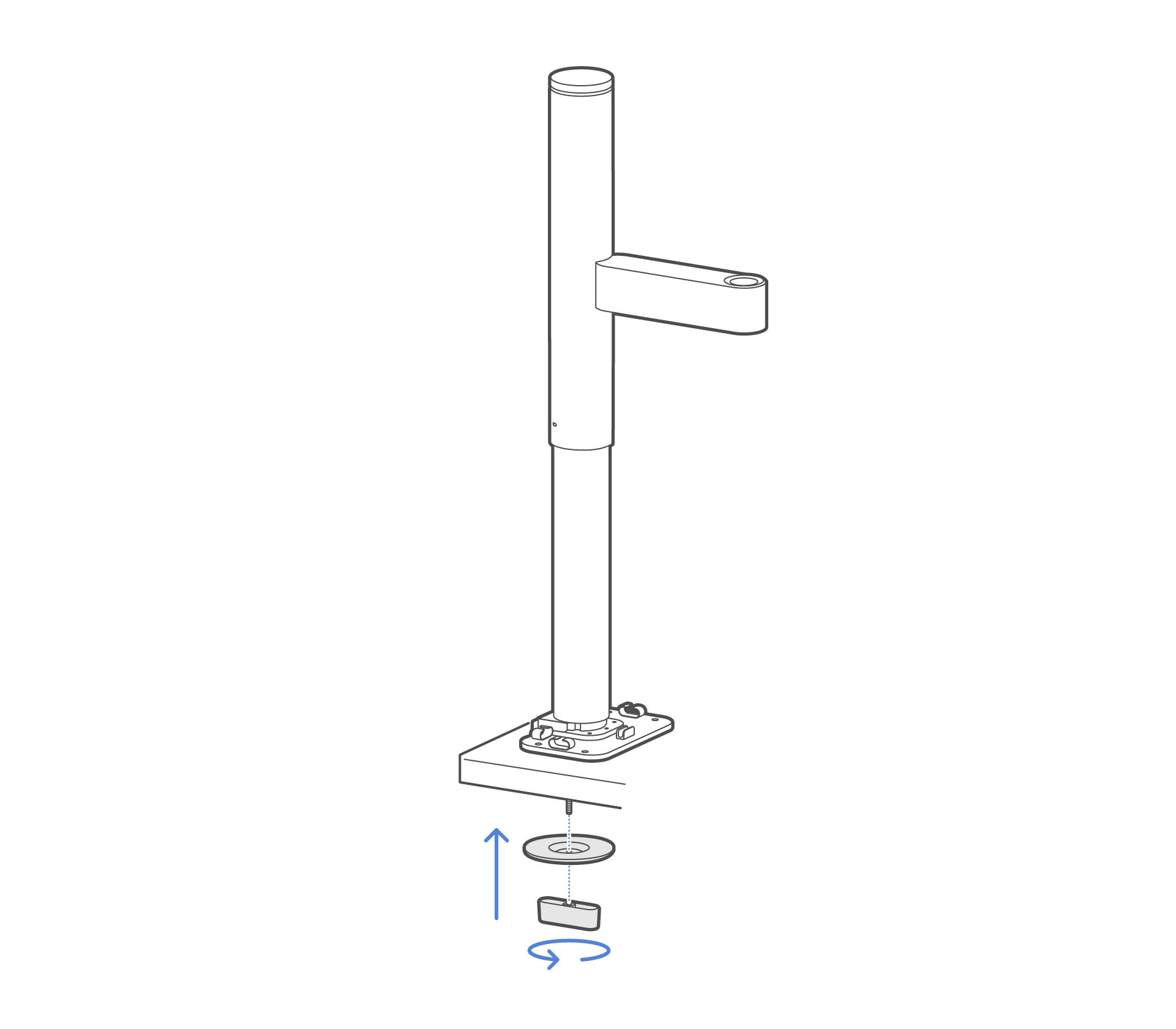

Thread the bottom plate and mounting knob from underneath, then turn counterclockwise to lock.

Thread the bottom plate and mounting knob from underneath, then turn counterclockwise to lock.

Step 2. Attach the VESA adapter

1.

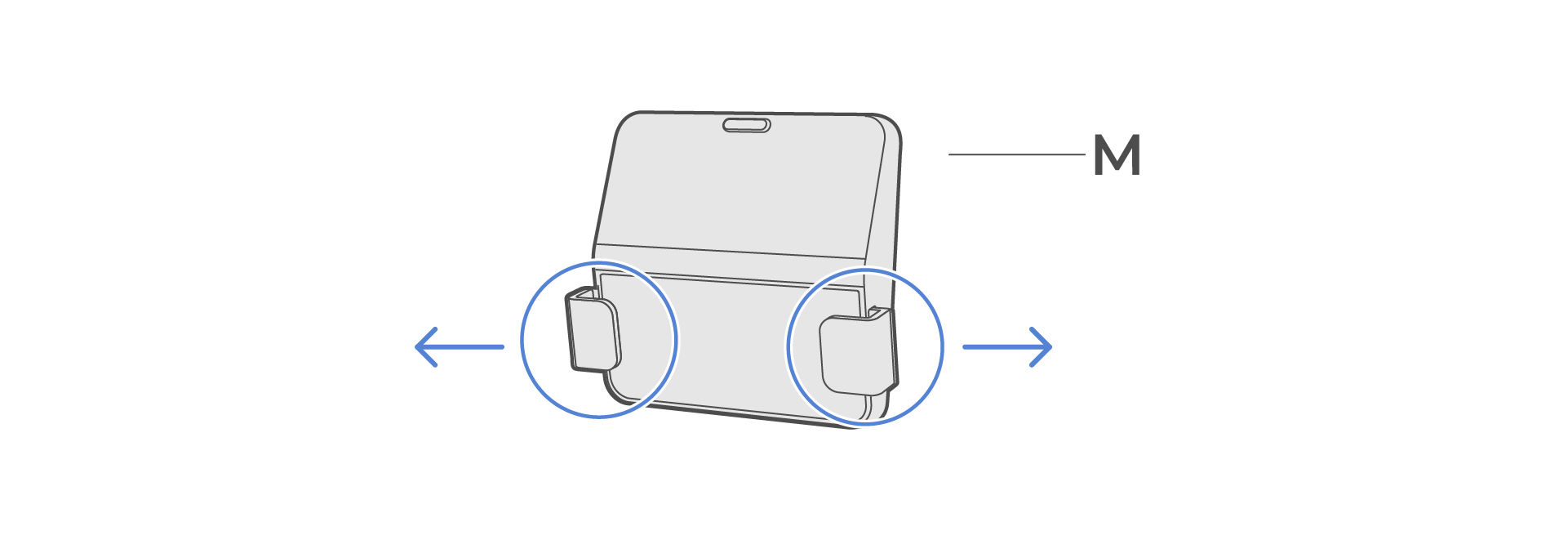

Spread the clips outward.

Spread the clips outward.

2.

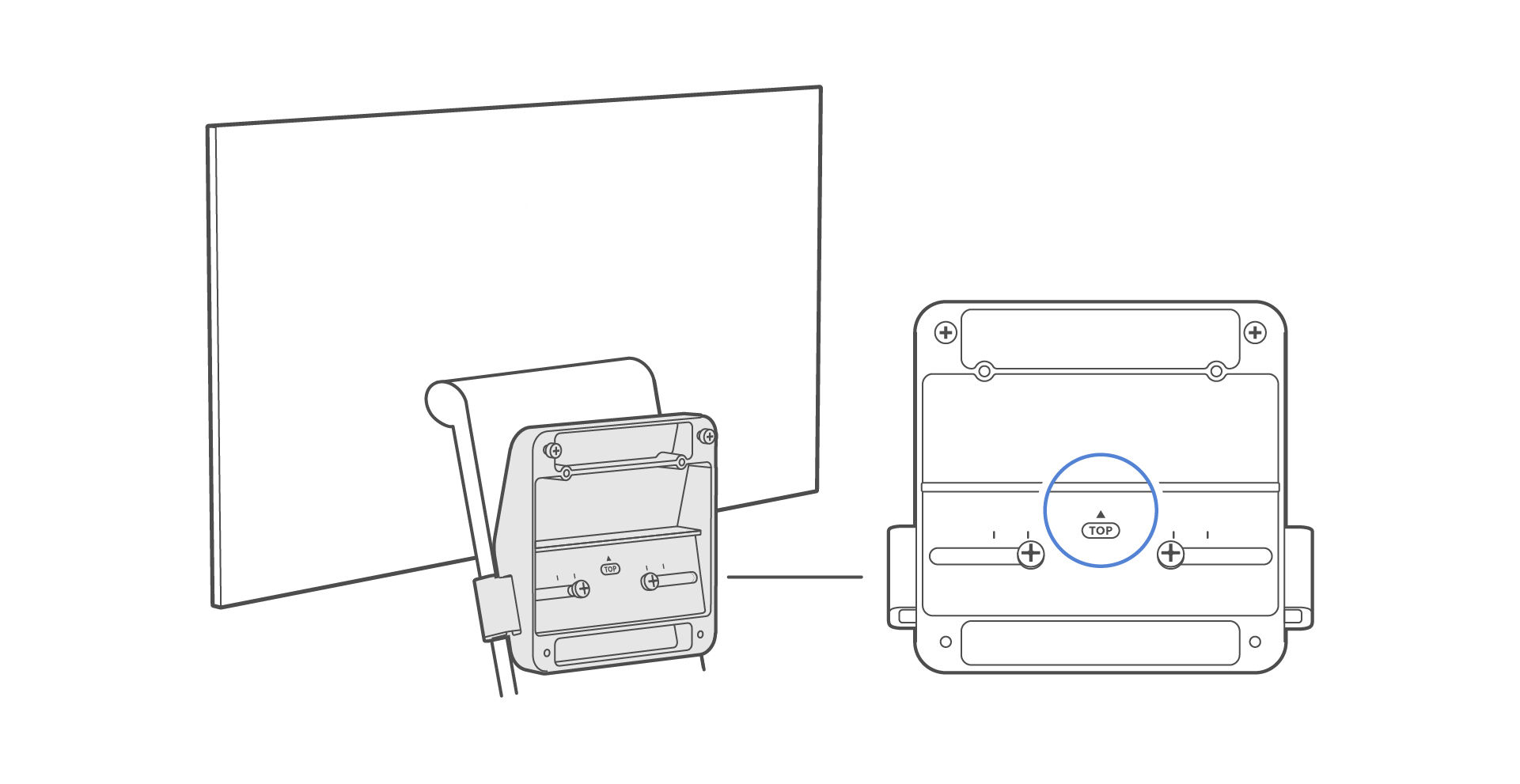

Orient the VESA adapter with the TOP marking facing up, then clamp it onto the stand.

Orient the VESA adapter with the TOP marking facing up, then clamp it onto the stand.

3.

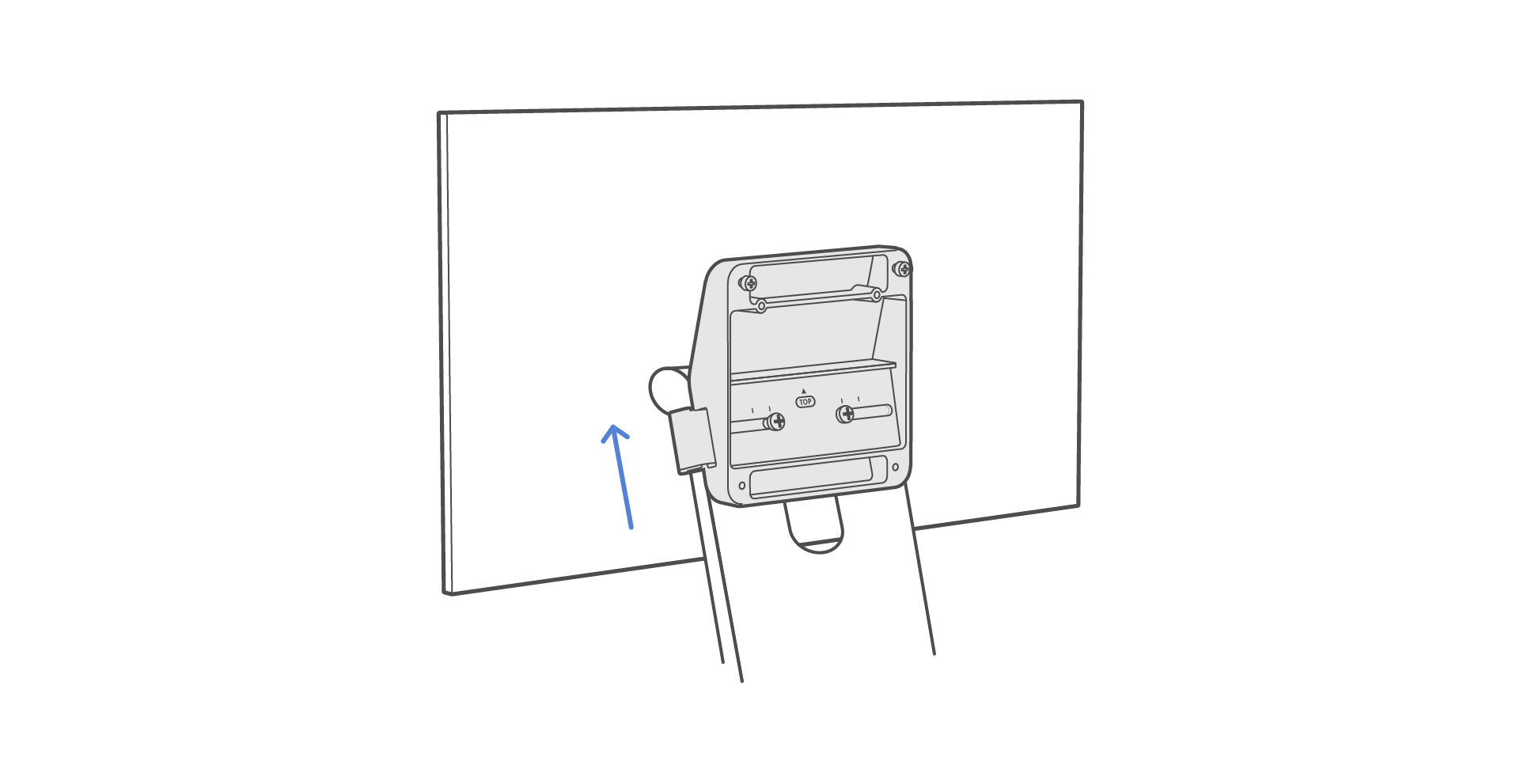

Slide the VESA adapter to the top of the stand.

Slide the VESA adapter to the top of the stand.

4.

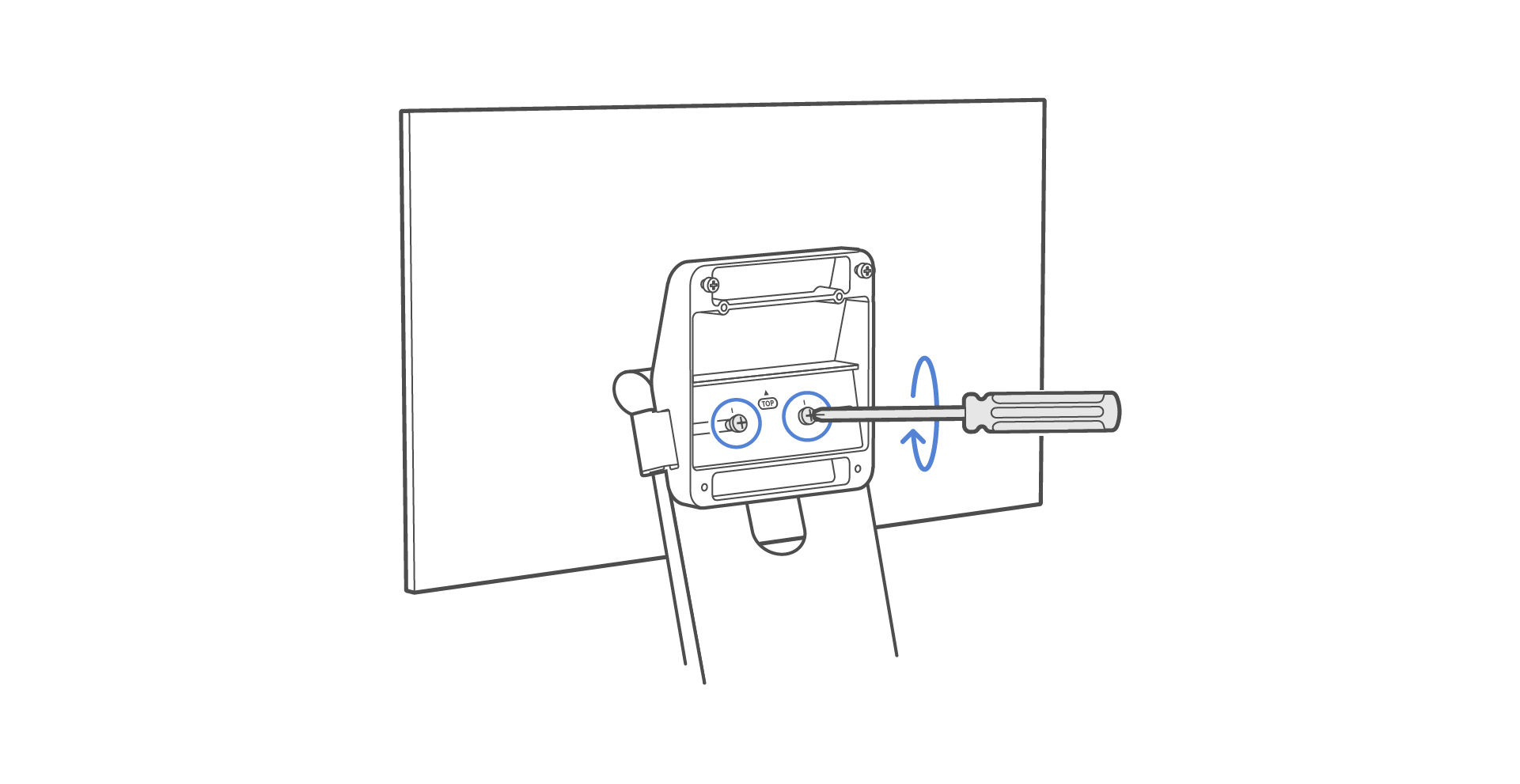

Tighten the two pre-installed screws with a Phillips screwdriver to secure the adapter.

Tighten the two pre-installed screws with a Phillips screwdriver to secure the adapter.

Step 3. Mount your display

1.

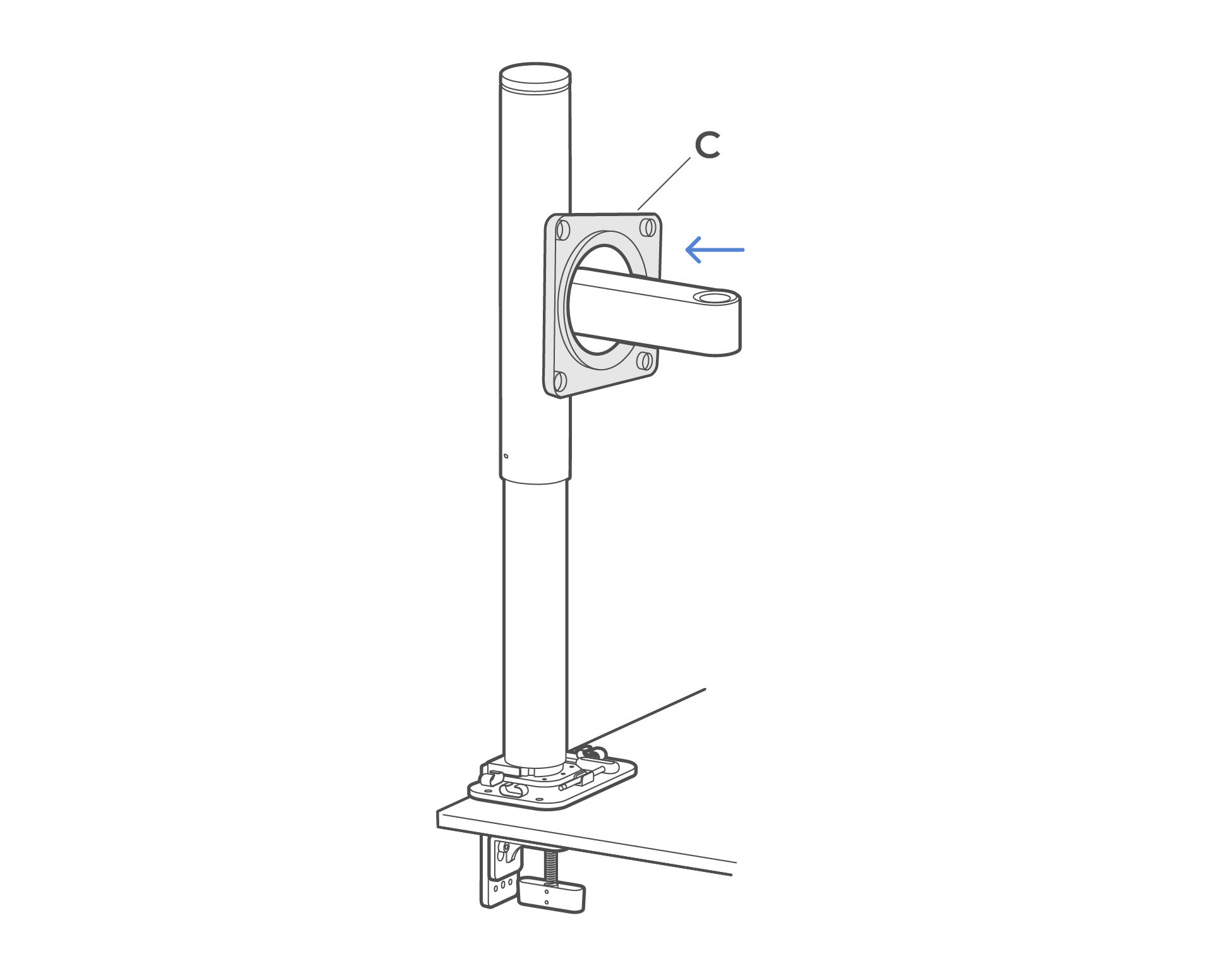

Thread the VESA cover (C) onto the lower arm.

Thread the VESA cover (C) onto the lower arm.

2.

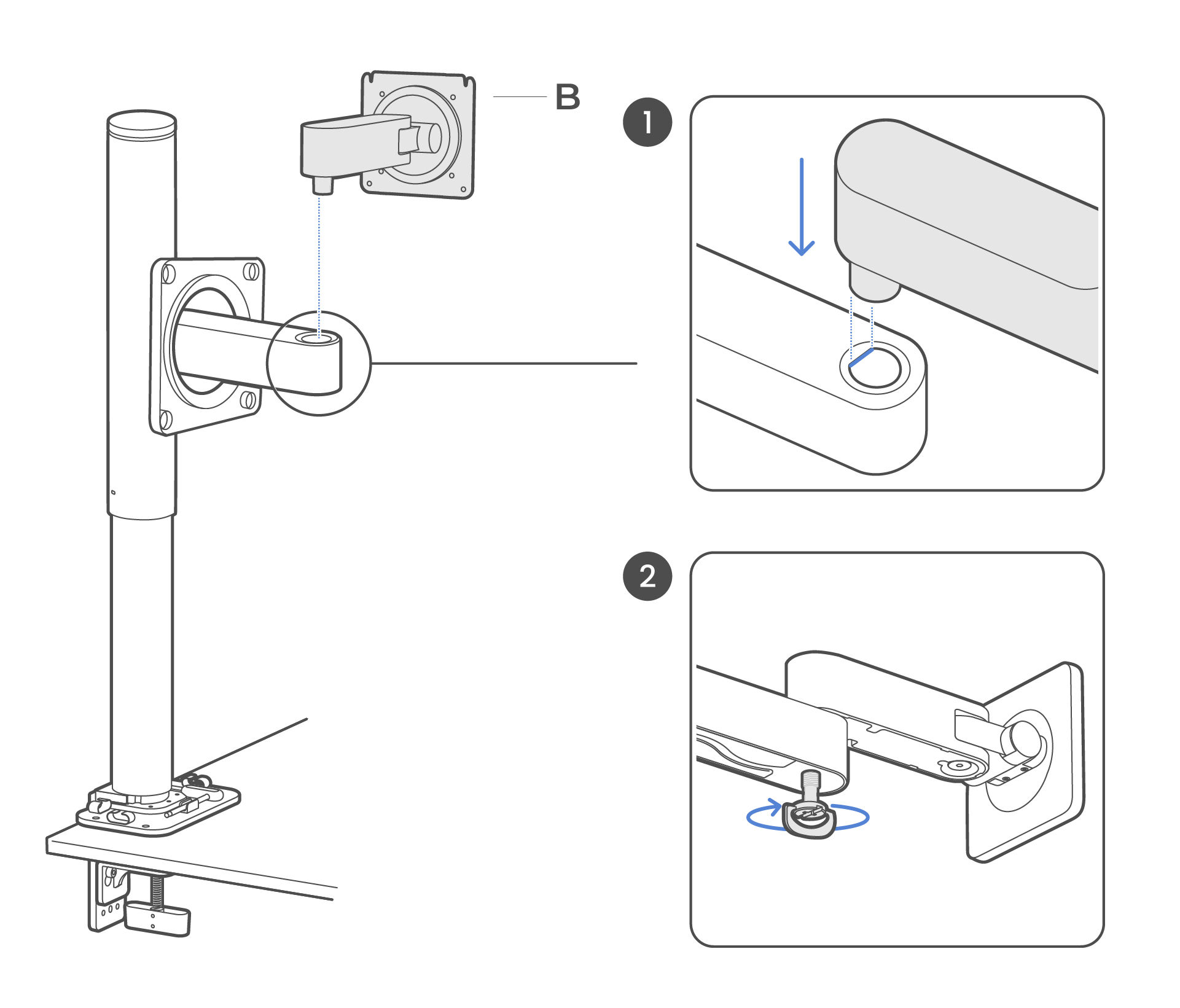

Lower the upper arm pin into the lower arm socket, then tighten the thumbscrew underneath to lock it.

Lower the upper arm pin into the lower arm socket, then tighten the thumbscrew underneath to lock it.

3.

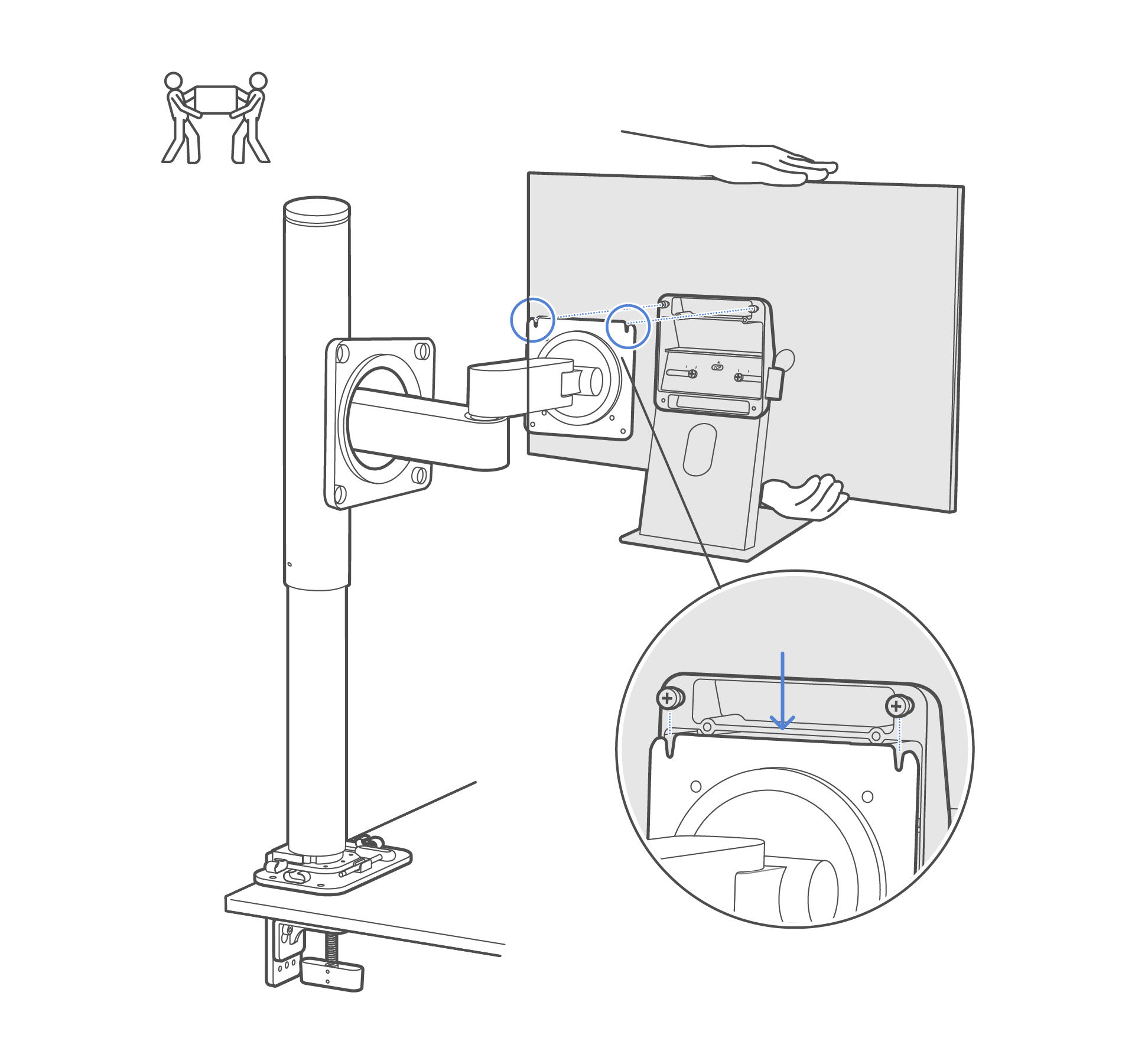

Align the pre-installed screws at the top of the VESA adapter with the slots on the upper arm, then hook the display onto the mount.

Align the pre-installed screws at the top of the VESA adapter with the slots on the upper arm, then hook the display onto the mount.

4.

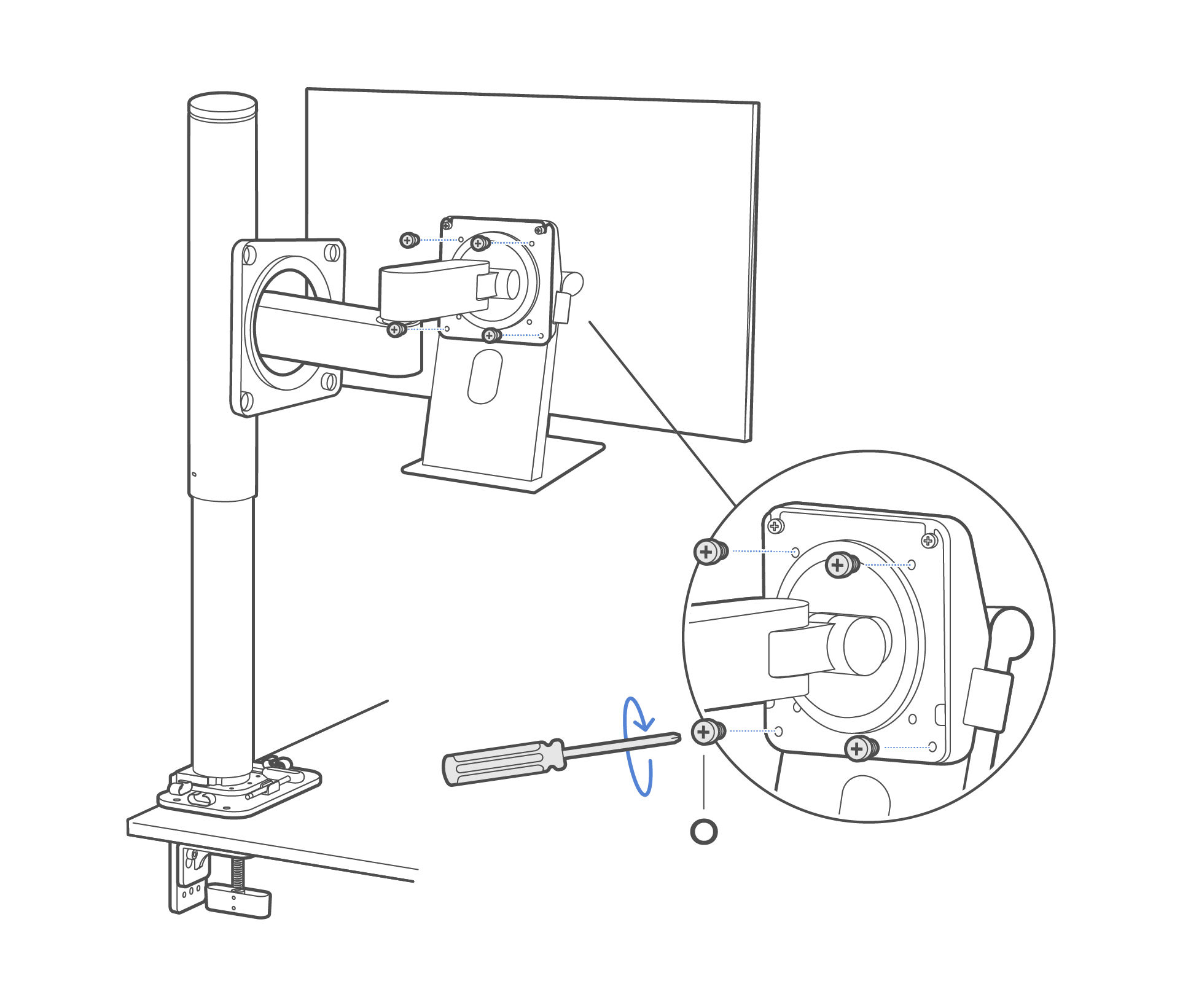

Fasten the four screws (O) with a Phillips screwdriver to secure the display assembly.

Fasten the four screws (O) with a Phillips screwdriver to secure the display assembly.

5.

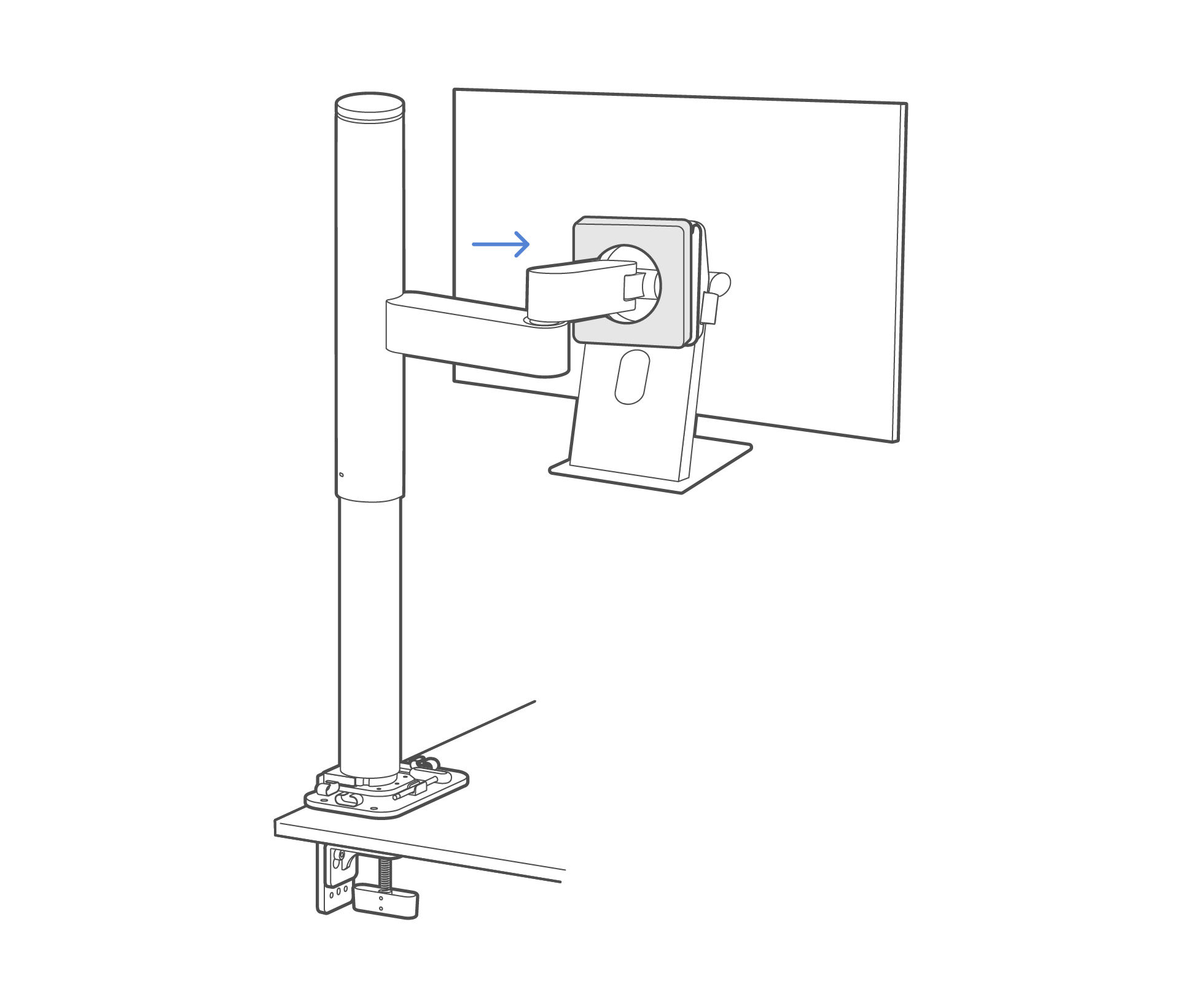

Snap the VESA cover onto the mount to conceal the screws.

Snap the VESA cover onto the mount to conceal the screws.

6.

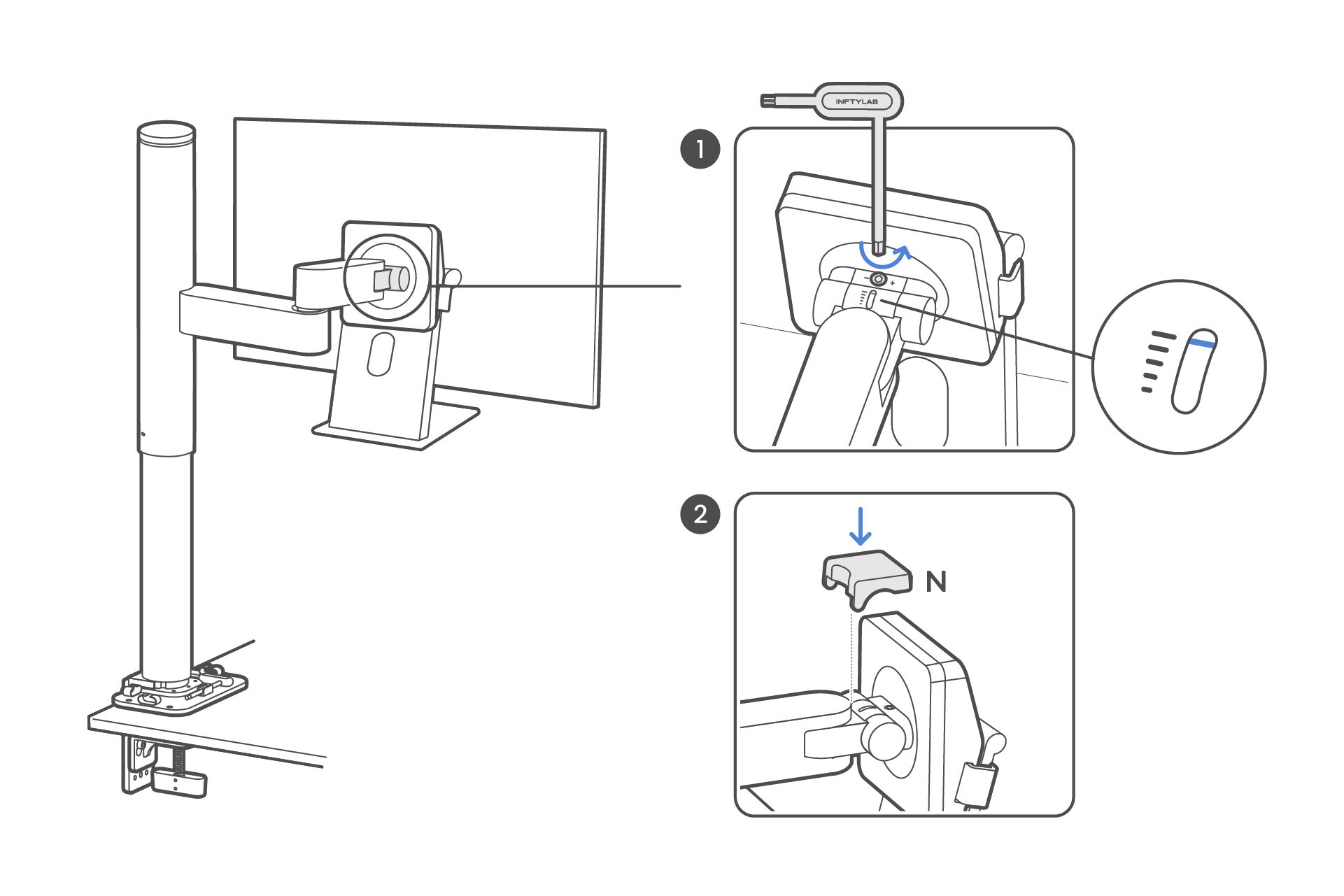

1. Use the 4 mm hex key (I) to adjust the tilt tension. Turn counterclockwise until the alignment indicator aligns with the longest mark to match your display’s weight. 2. Snap the tilt lock (N) onto the tilt joint to secure the display’s native tilt.

1. Use the 4 mm hex key (I) to adjust the tilt tension. Turn counterclockwise until the alignment indicator aligns with the longest mark to match your display’s weight. 2. Snap the tilt lock (N) onto the tilt joint to secure the display’s native tilt.

Step 4. Switch the dial to "Stand"

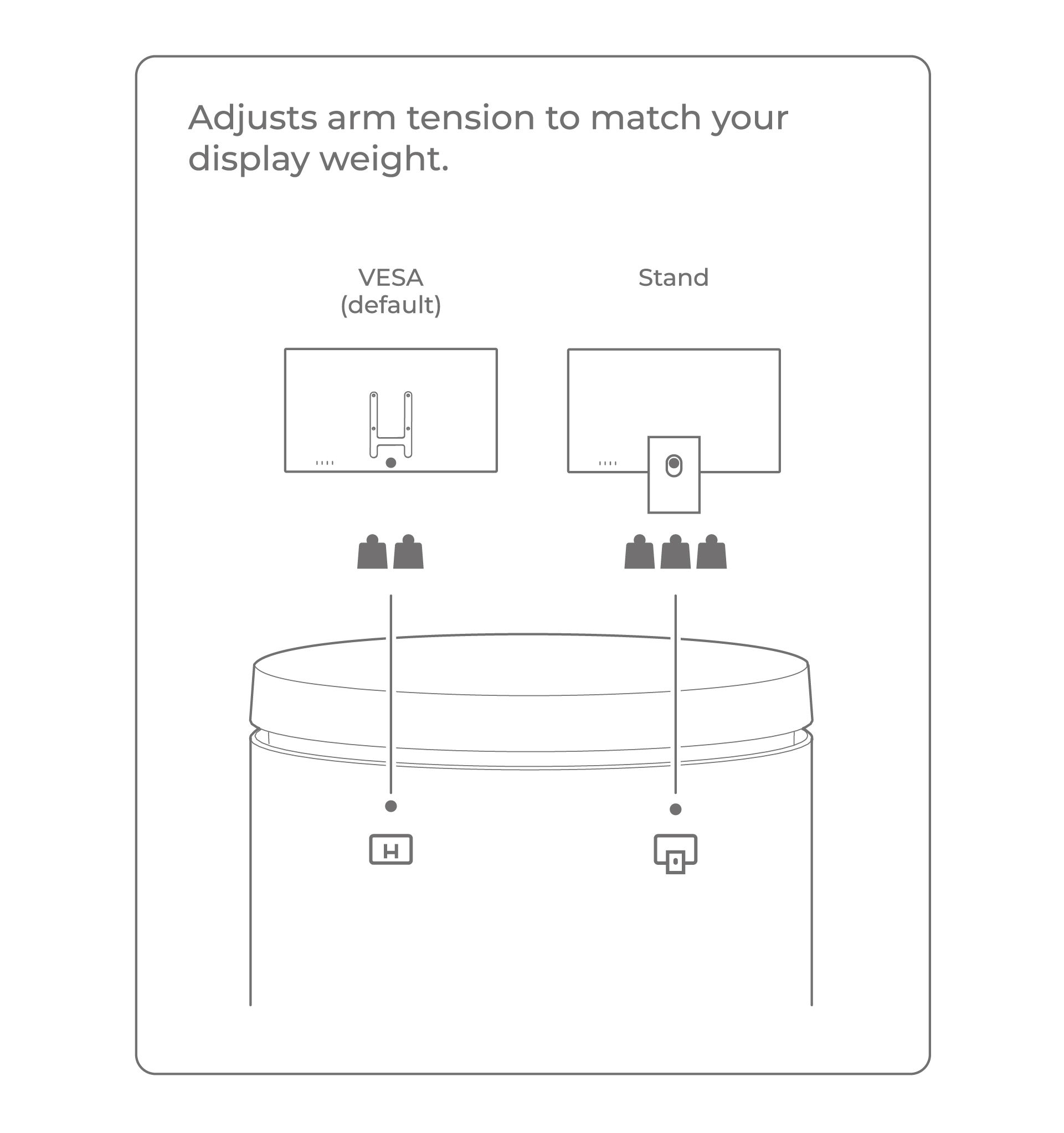

To adjust the arm tension to match your display’s weight, you will need to change the dial setting. By default, the dial on top of the arm is set to VESA. To complete the Stand setup, follow the steps below to switch it.

To adjust the arm tension to match your display’s weight, you will need to change the dial setting. By default, the dial on top of the arm is set to VESA. To complete the Stand setup, follow the steps below to switch it.

1.

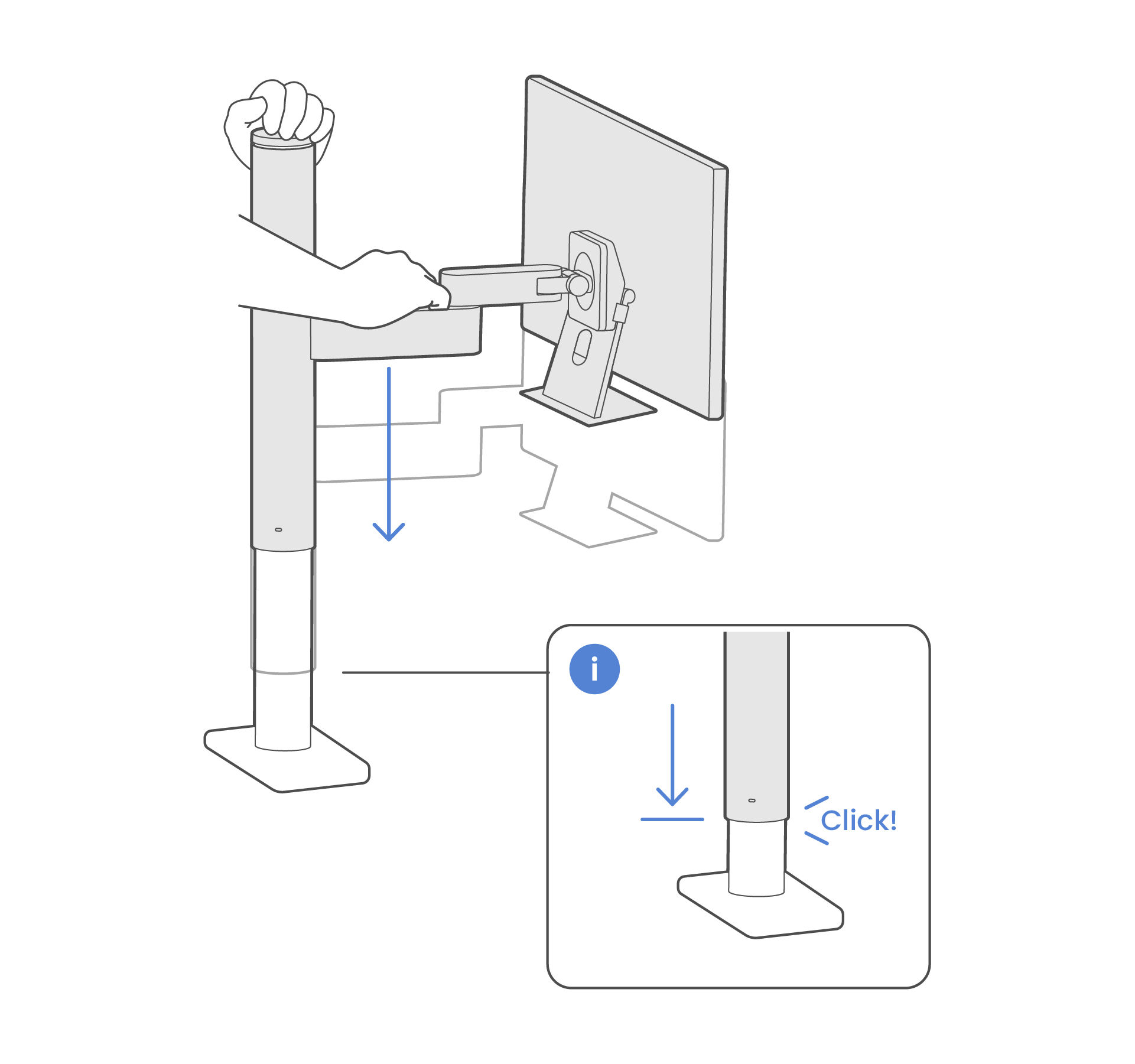

Place one hand on the top of the main pole and hold the lower arm with the other hand. Press down firmly until the arm reaches the bottom and you hear a click.

Place one hand on the top of the main pole and hold the lower arm with the other hand. Press down firmly until the arm reaches the bottom and you hear a click.

2.

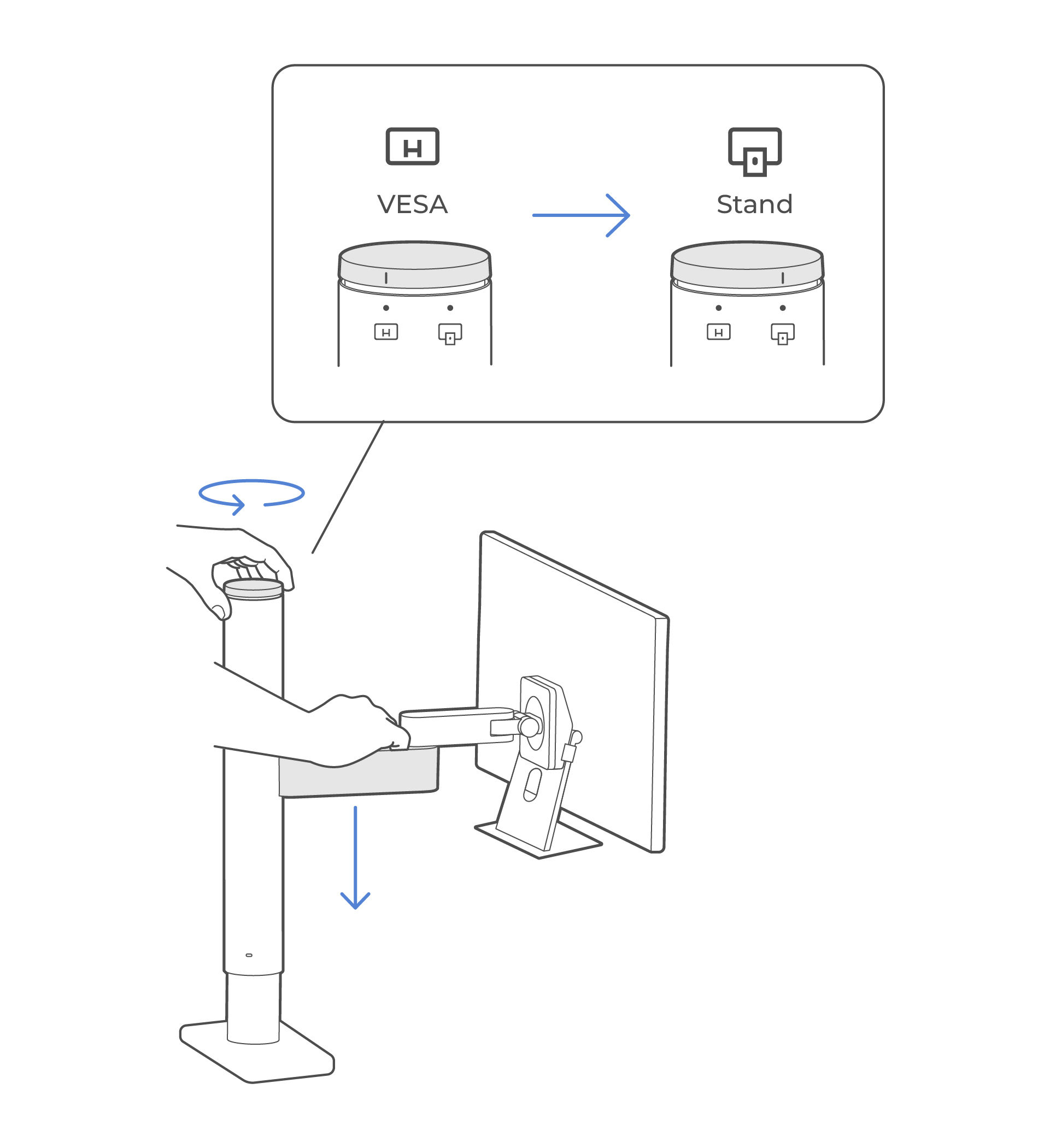

Maintain downward pressure on the arm and rotate the top dial from VESA to Stand.

Maintain downward pressure on the arm and rotate the top dial from VESA to Stand.

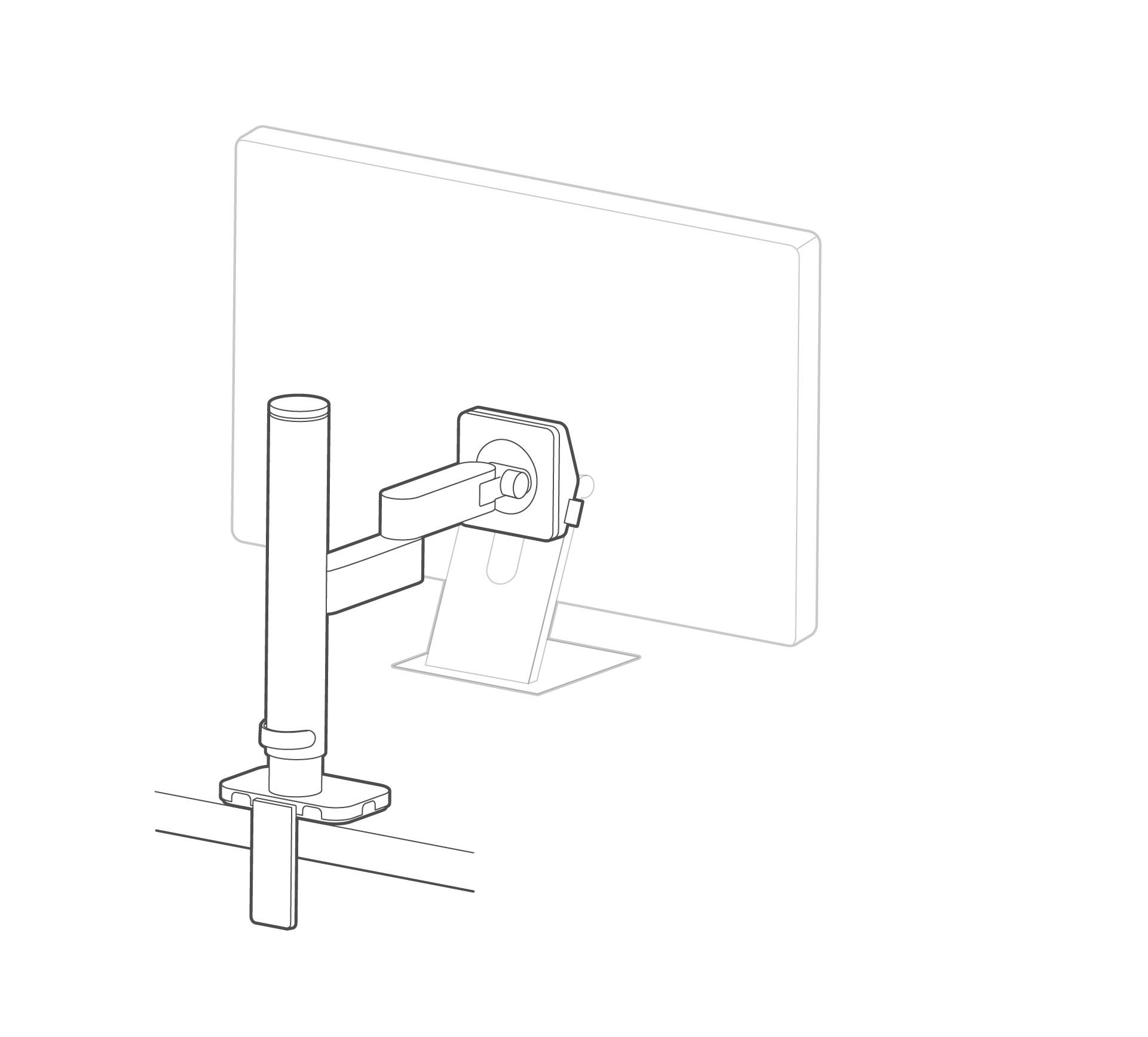

Step 5. Manage cables

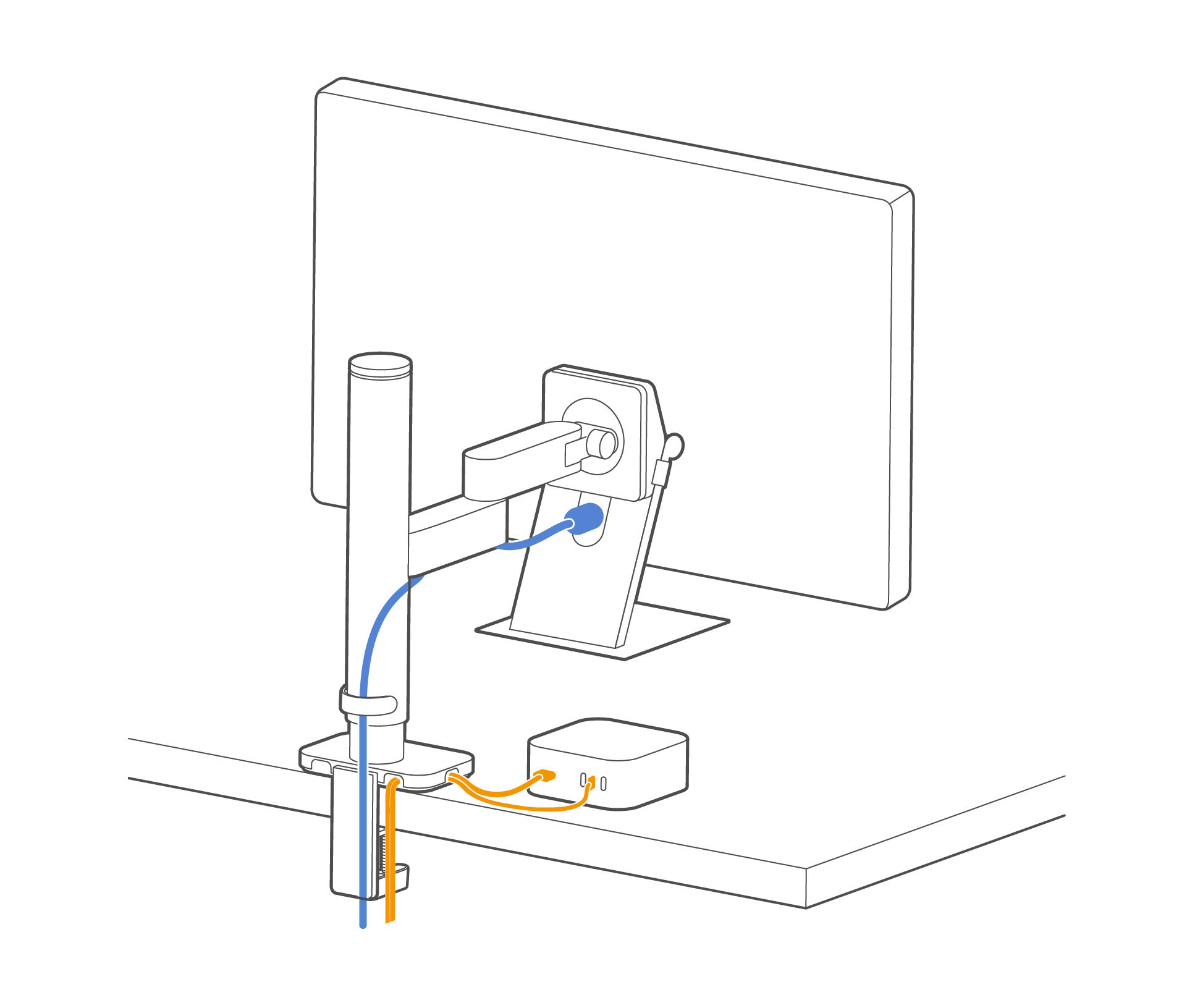

Overview illustration of cable management.

Overview illustration of cable management.

1.

Leave at least 40 cm of cable slack to prevent cable strain or damage when adjusting or tilting the arm.

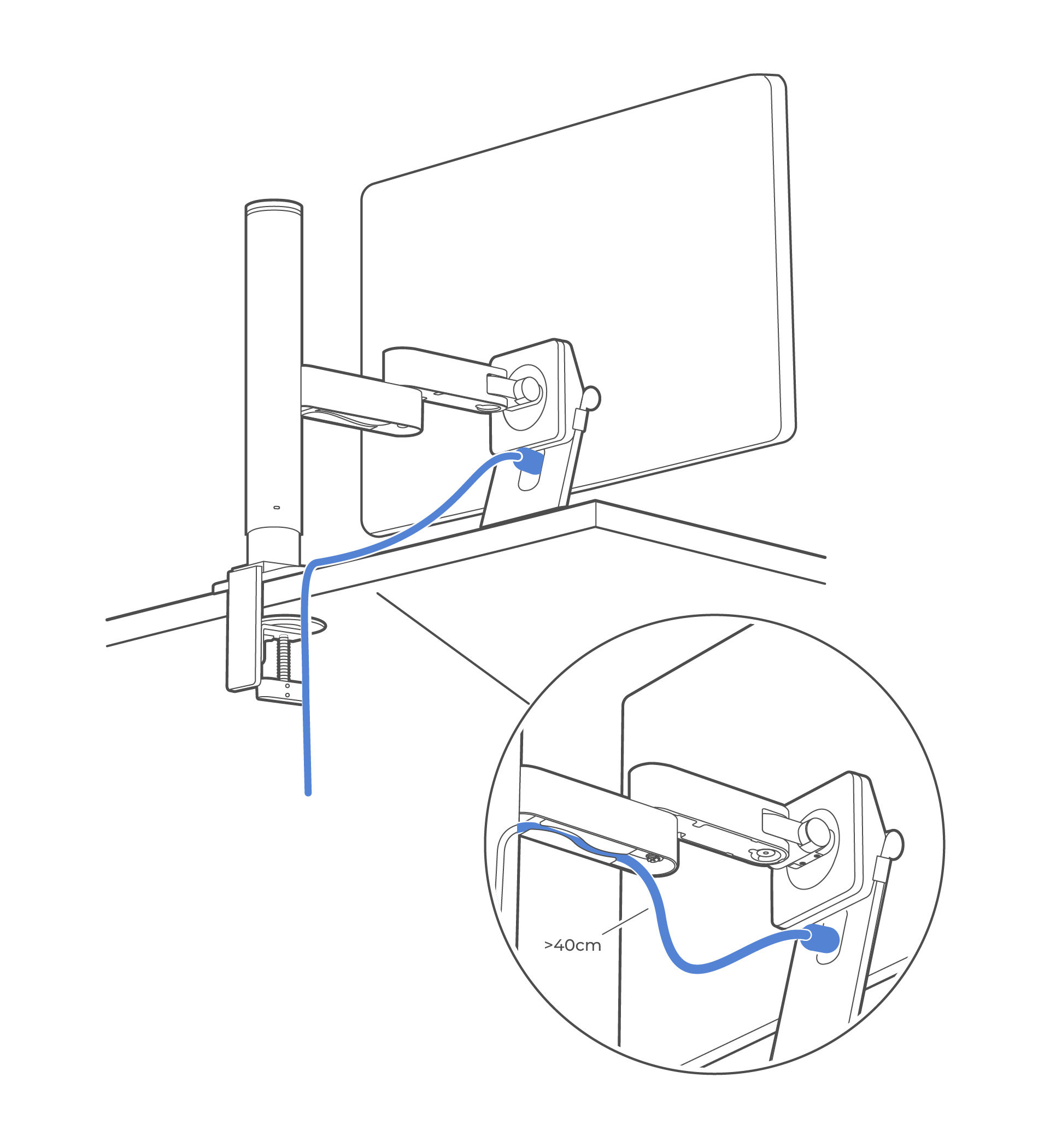

Route the display cables through the cable channel under the arm and down along the pole.

Route the display cables through the cable channel under the arm and down along the pole.

2.

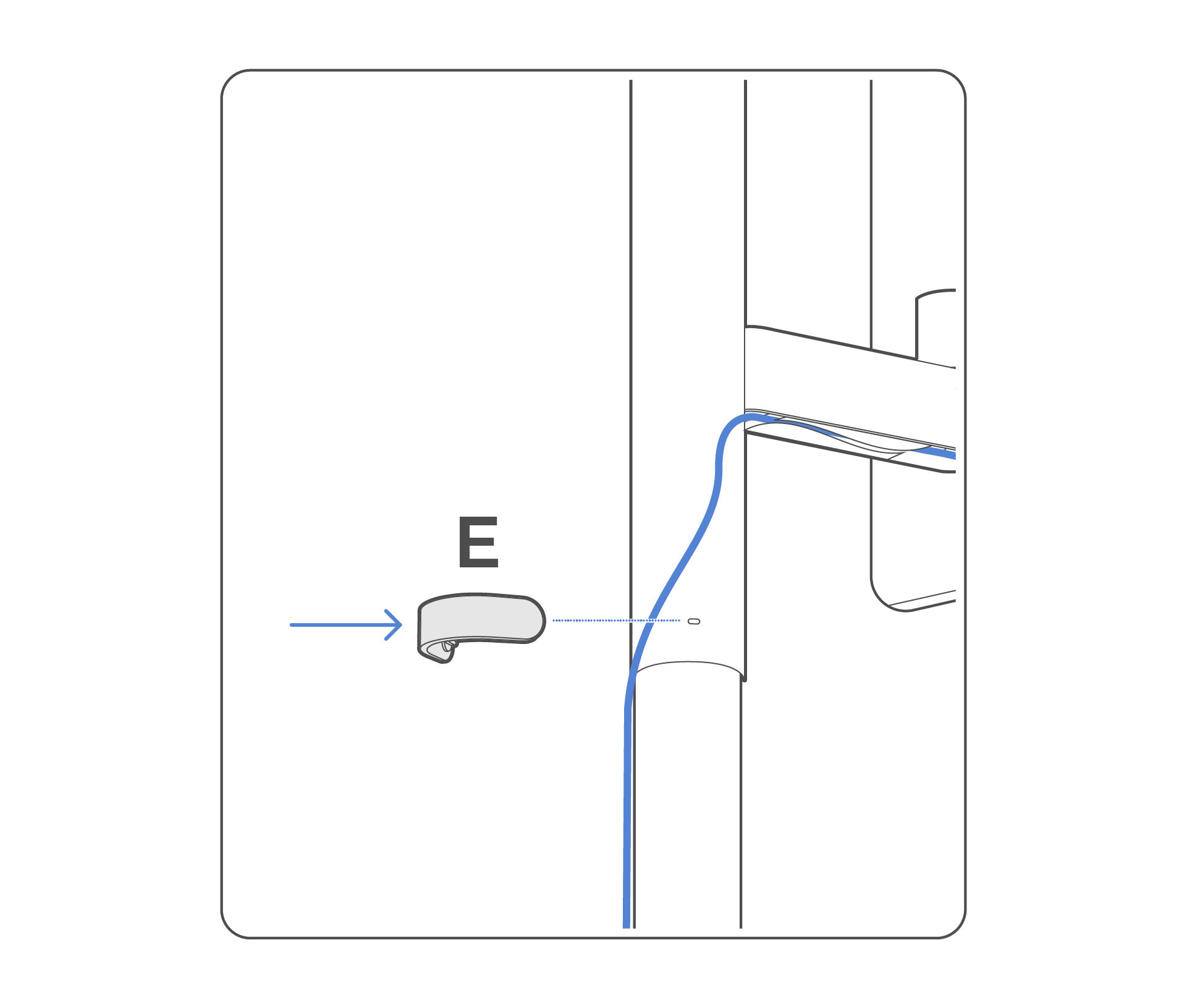

Snap the cable clip (E) into the slots on the back of the pole to keep the cables in place.

Snap the cable clip (E) into the slots on the back of the pole to keep the cables in place.

3.

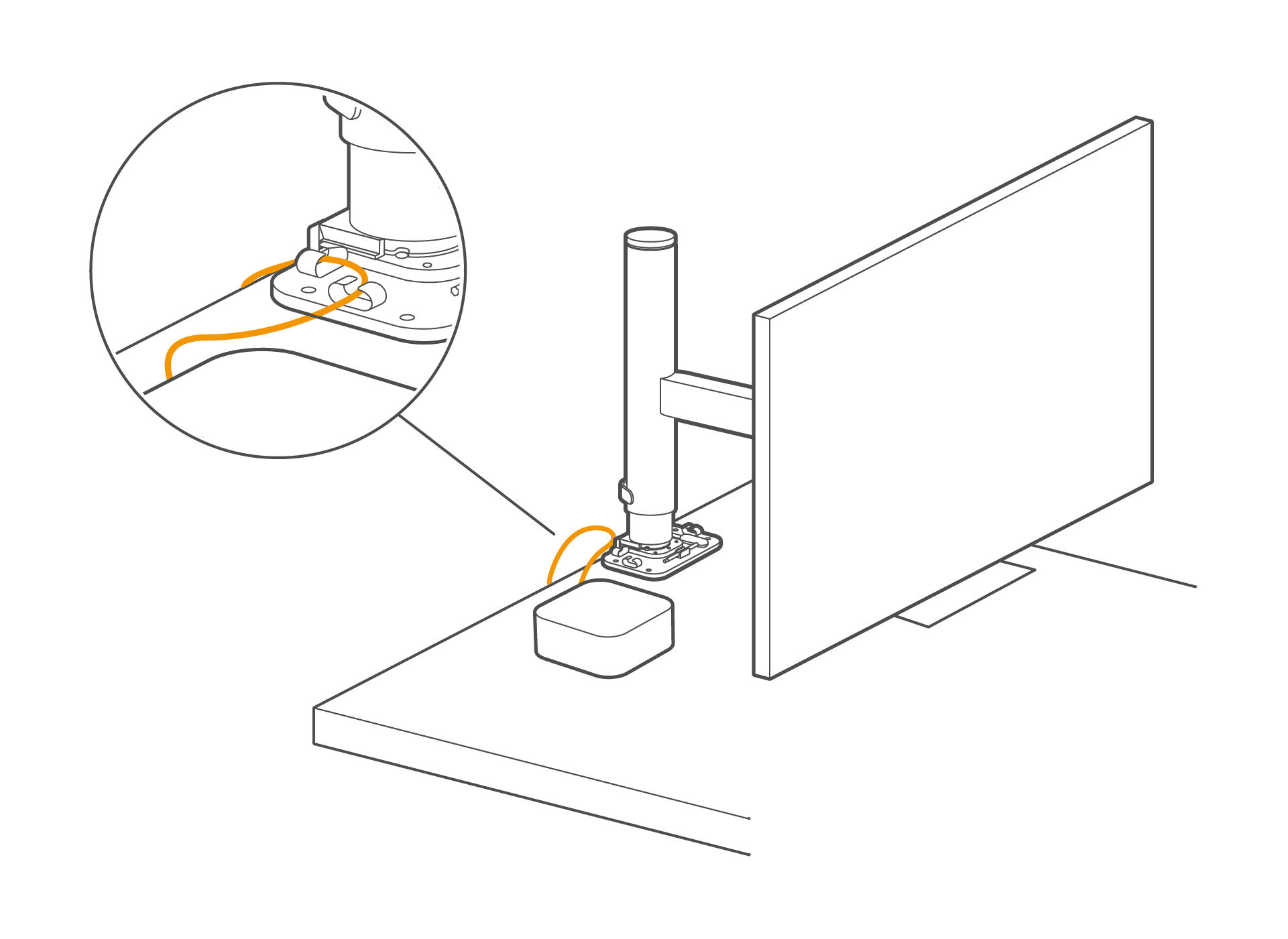

Route cables from your devices through the metal guide on the mount base.

Route cables from your devices through the metal guide on the mount base.

4.

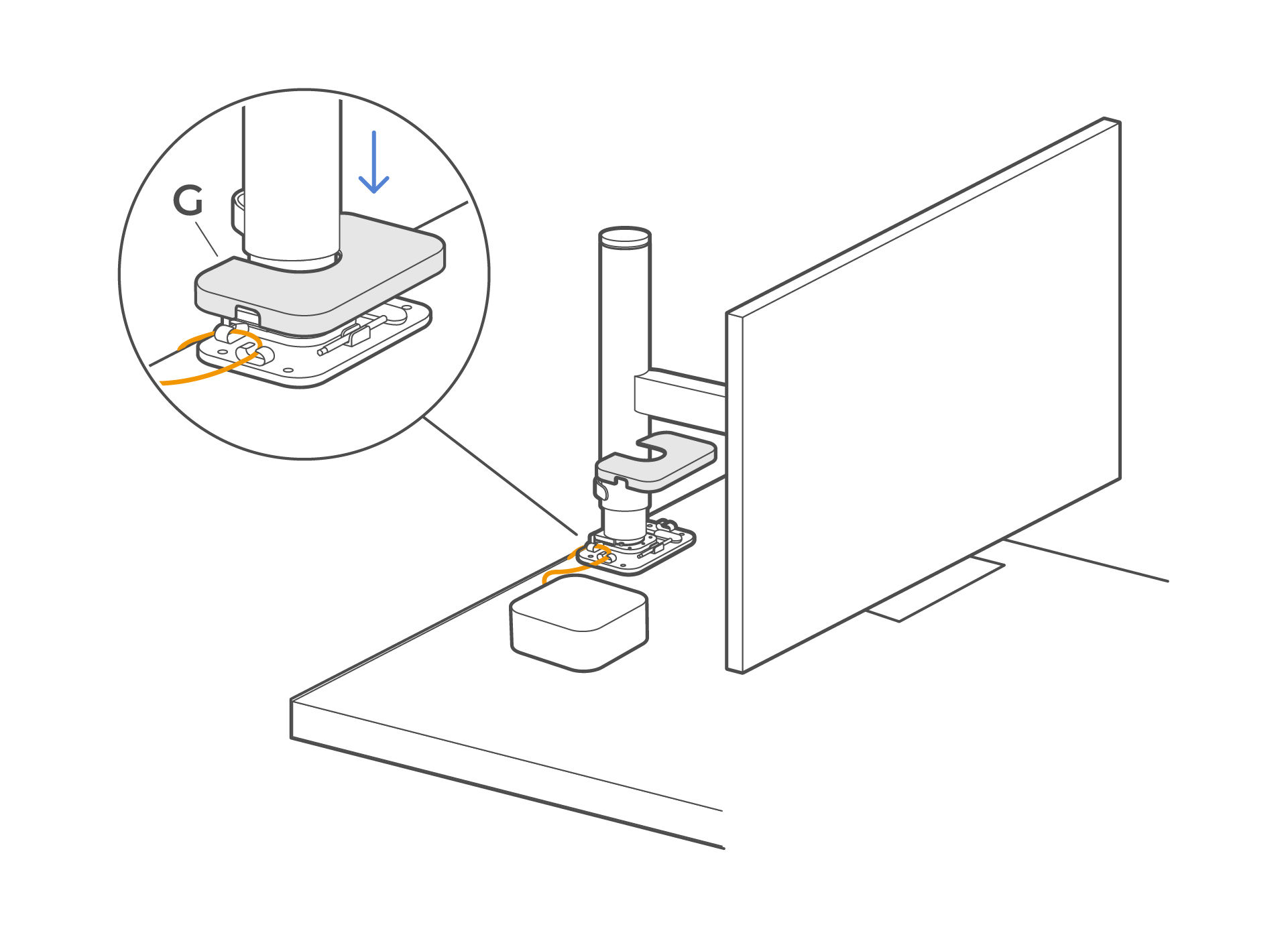

Slide the base cover down over the mount to conceal the cables.

Slide the base cover down over the mount to conceal the cables.
