Can My Desk Support a Monitor Arm? A Complete Buying Checklist

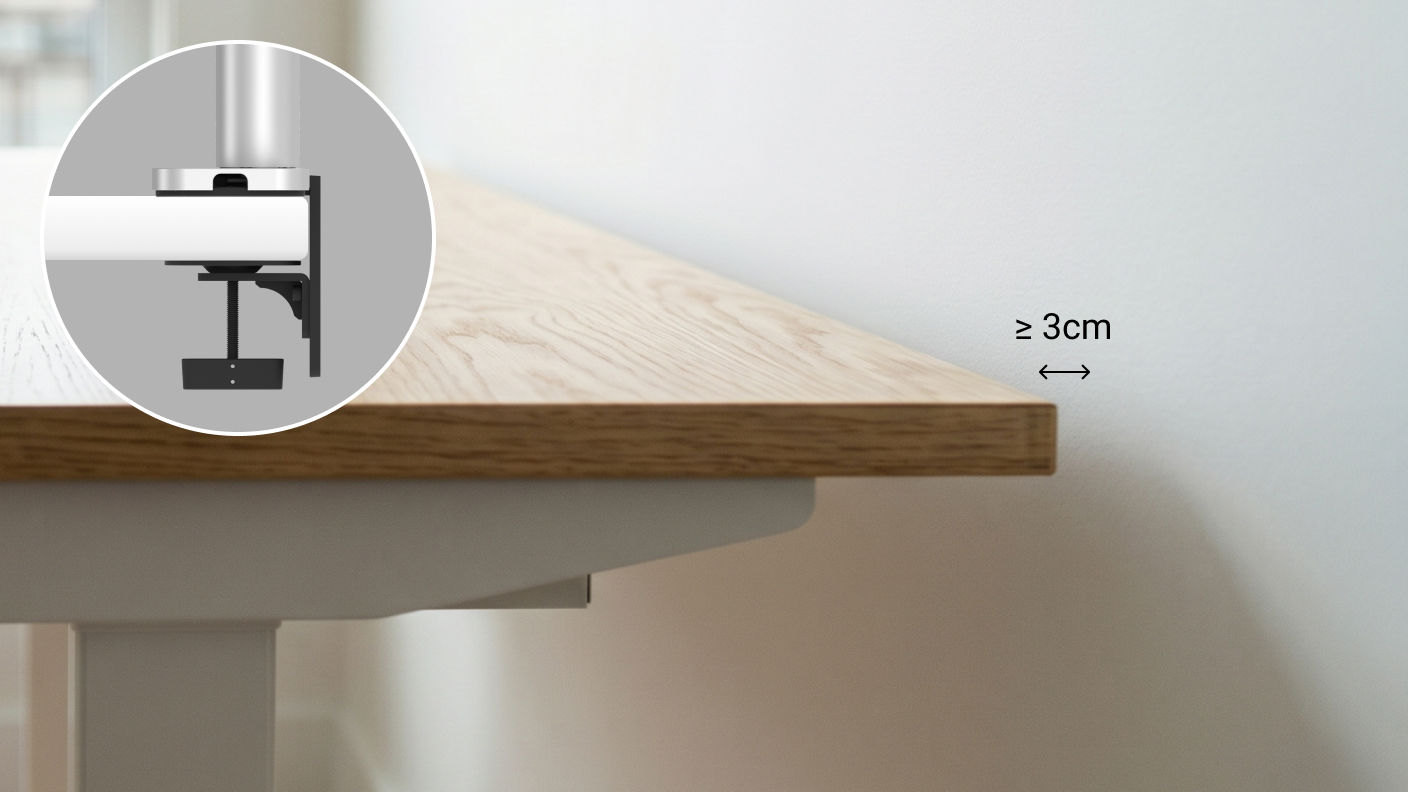

If there's at least 3cm (1.18inches) of clearance between your desk and the wall, a desk clamp is usually the easiest and most flexible mounting option. As long as your desktop thickness is within the supported range, installation requires no drilling and the monitor arm can be easily repositioned later.

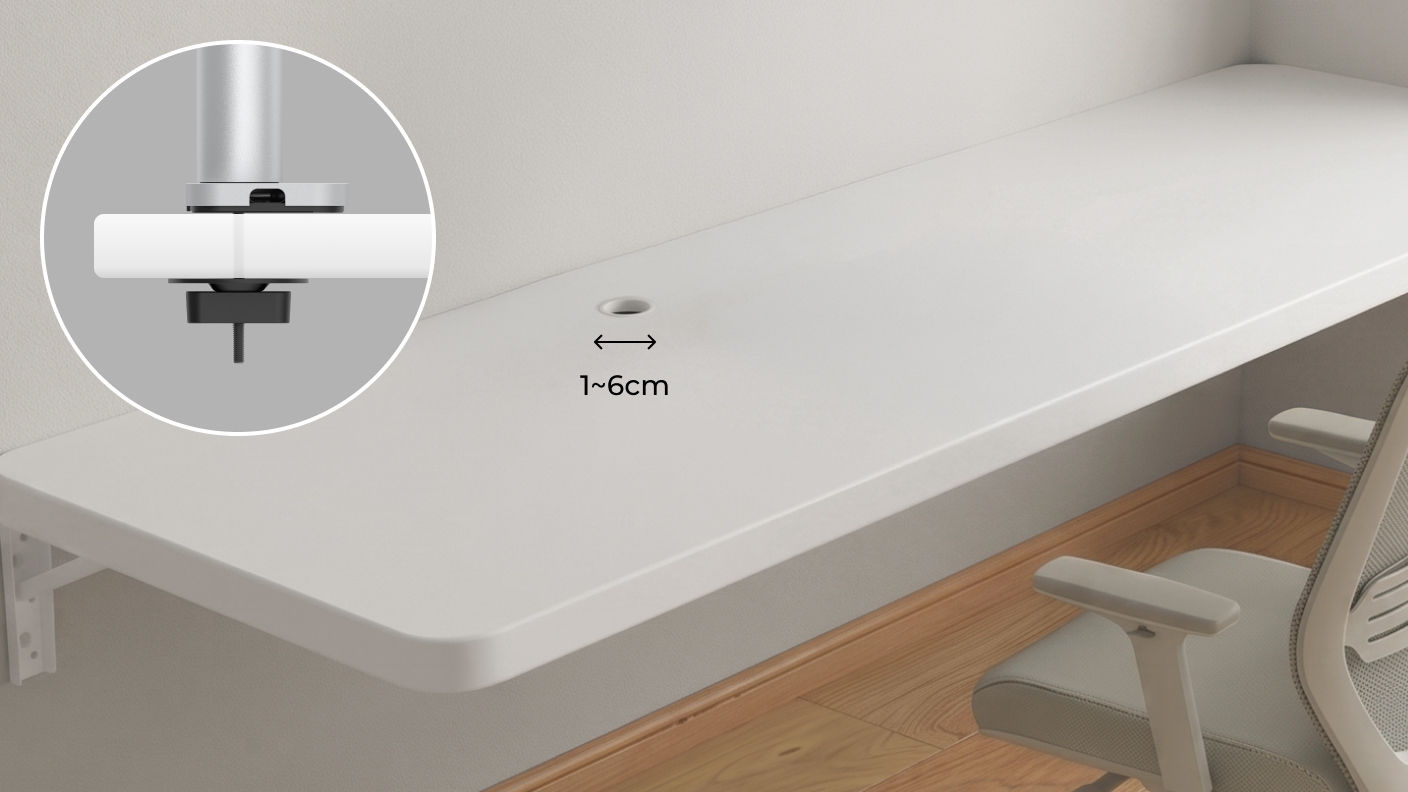

If your desk sits flush against the wall, has an unusually shaped edge, or includes structures underneath that block the clamp, a grommet mount may be a better option. This requires drilling a hole (typically 1-6 cm in diameter) through the desktop, and the desktop material must be strong enough to support the installation.

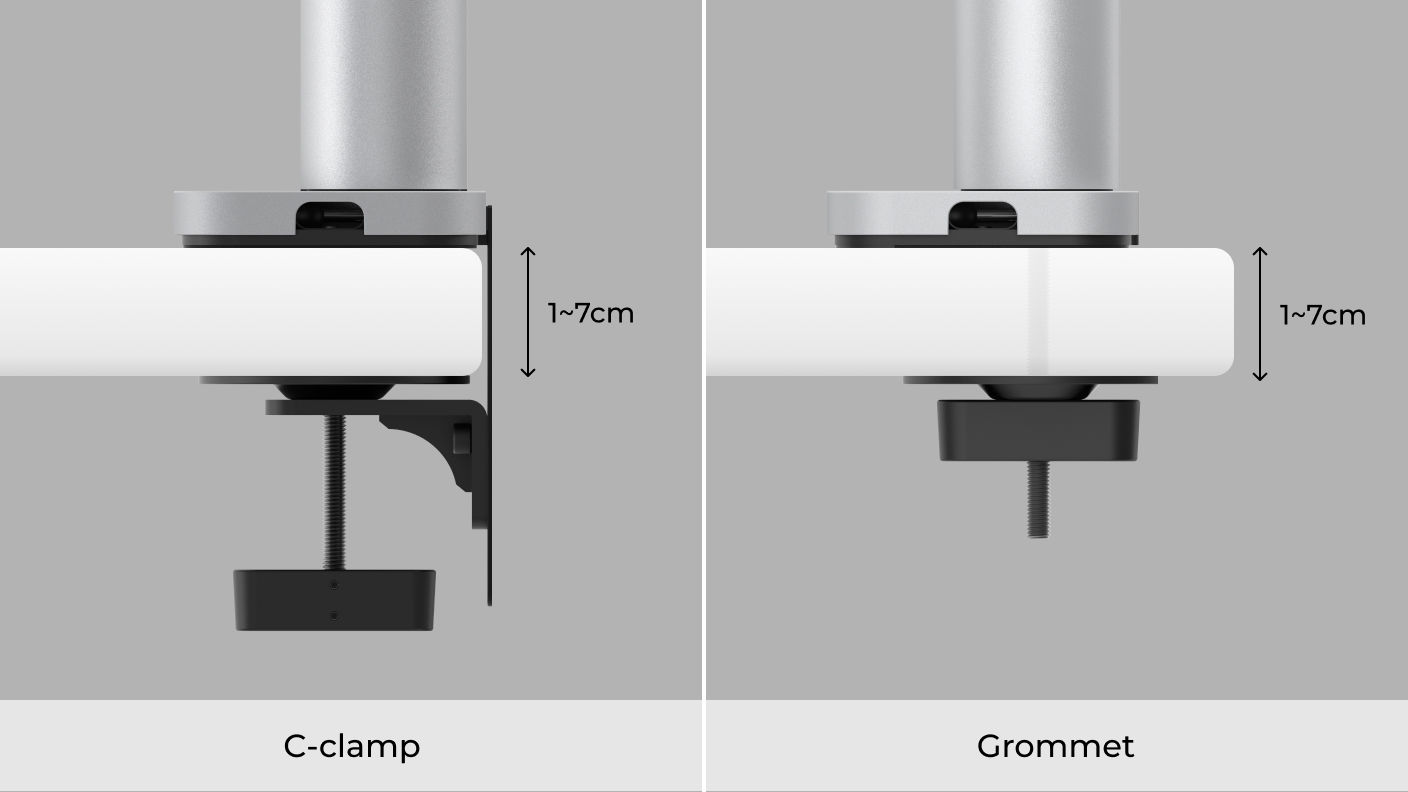

Every monitor arm has its own supported desktop thickness range, so it's important to check the specifications before buying. Keep in mind that desk clamp and grommet installations may support different thickness ranges.

For example, the INFTYLAB Studio Arm supports desktops 1–7 cm thick.

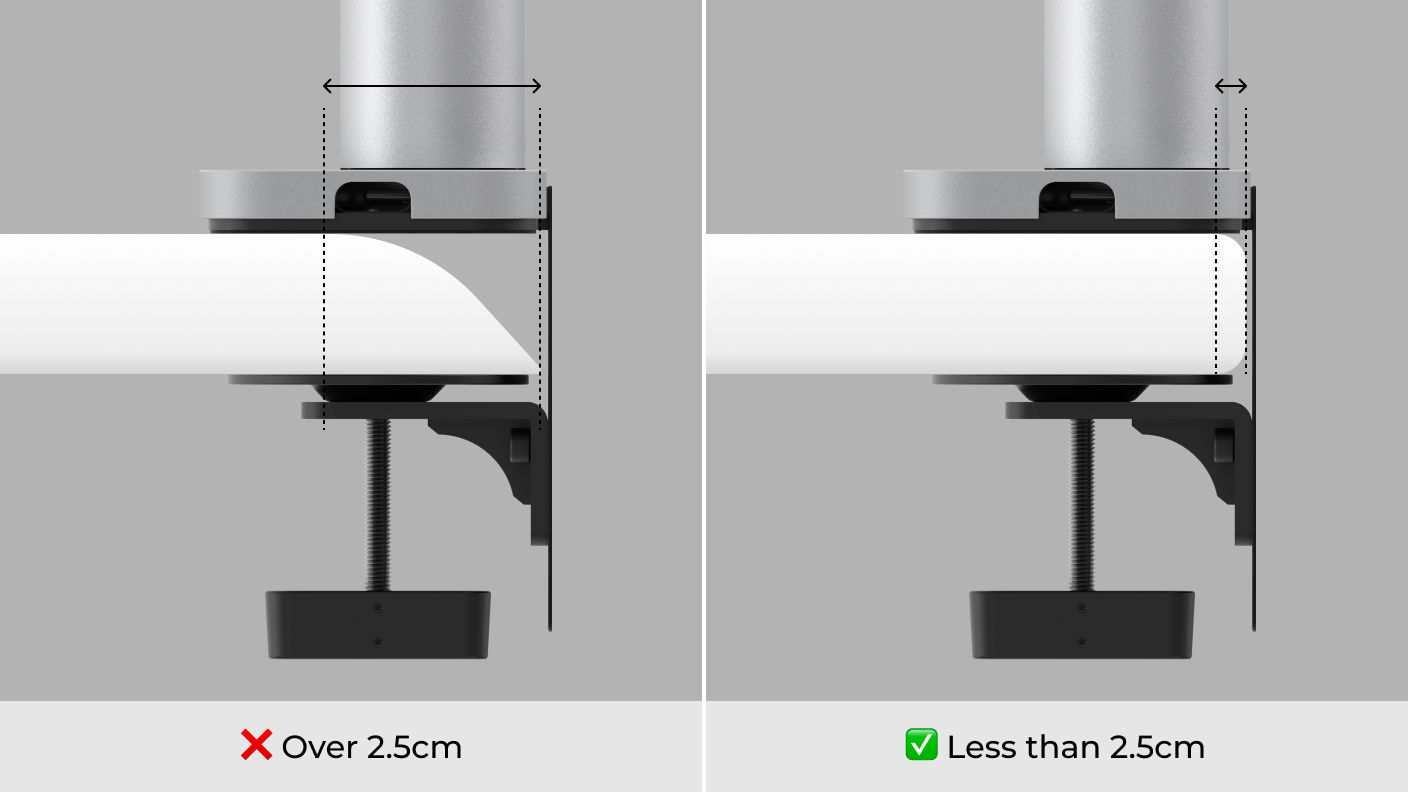

For a secure installation, your desk should provide at least 2.5 cm (1 inch) of flat surface for the clamp to grip. If the edge is beveled, curved, or otherwise reduces the available clamping surface, the desk clamp may not hold securely, affecting the stability of the monitor arm.

Check whether there are any protruding structures beneath the desktop, such as a support beam located within 5 cm (2 inches) of the desk edge.

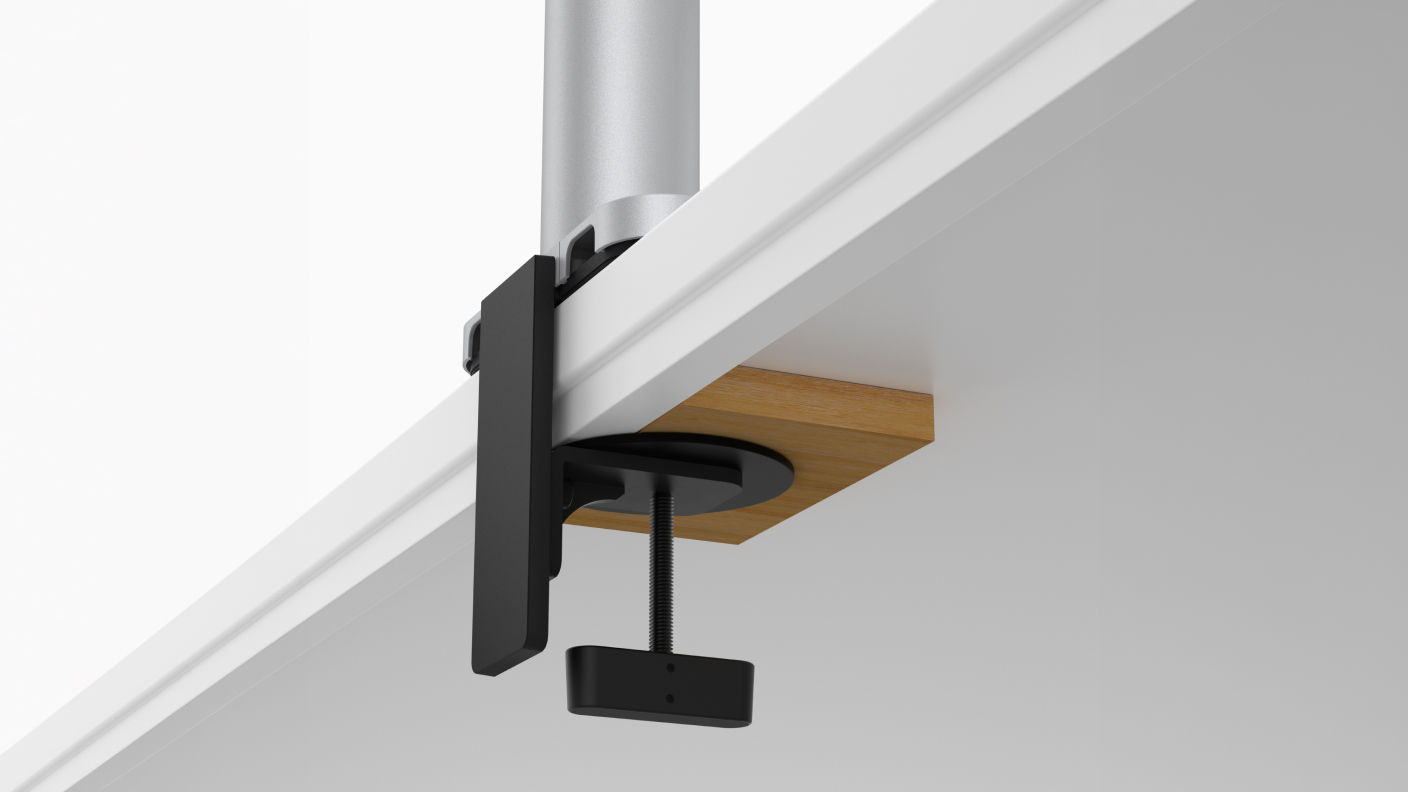

If a support beam is located within this area, don't assume a monitor arm won't fit. As long as the combined height of the desktop and the beam remains within the clamp's supported range, you can place a wood block of equal or greater thickness beneath the clamp to create a flat, stable clamping surface.

If your desk meets all the requirements above, there's just one final step before placing your order: make sure your monitor arm is compatible with your Apple display.

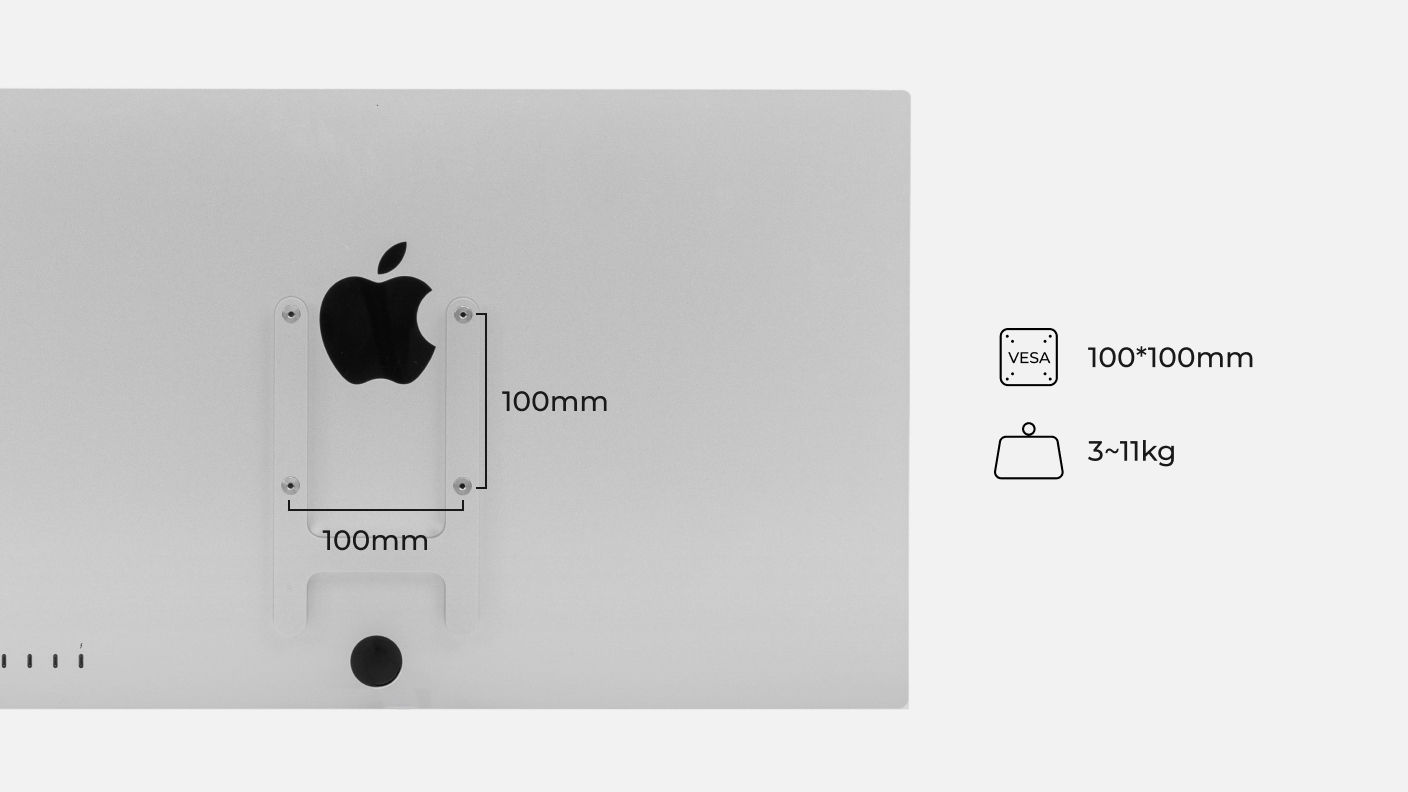

The Apple Studio Display uses the standard 100 × 100 mm VESA mounting pattern, making it compatible with most monitor arms. The VESA version weighs 5.5 kg (12.1 lbs), so don't rely on maximum weight capacity alone. Choose a monitor arm with a suitable supported weight range and stable spring mechanism to keep the display securely in position over time.

If you'd like a more detailed guide on choosing a monitor arm for your Apple display—including ergonomics, adjustment quality, weight range, and cable management—see: How to Choose the Right Monitor Arm for Your Studio Display or iMac

INFTYLAB Studio Arm (AM01 / AM02) is the only monitor arm line on the market designed specifically for Apple displays, supporting the full range of Studio Display and iMac models. It combines Apple's minimalist aesthetic with a smooth, refined adjustment experience—without compromising on functionality.

• Support for Every Version
  Whether you have the VESA or original stand version, INFTYLAB Studio Arm provides a dedicated mounting solution for both. Alongside the standard VESA arm, a dedicated adapter lets you retain Apple's original stand while enjoying ergonomic height adjustment and a healthier viewing angle.

• Designed to Match Apple Displays
  Built with aluminum alloy components and Mac-matching silver finishes, plus a dedicated VESA cover that preserves the clean look of the display.
• Ready Out of the Box
  No repeated tool-based spring tension adjustments. Simply fine-tune the adjustment knob after installation for the ideal lifting force and a smooth, stable feel.
• Factory-Tuned for Apple Displays
  Tilt and spring tension are pre-configured for Apple displays, delivering smooth, stable movement without extensive manual adjustment.

• Complete Cable Management for the Mac Ecosystem
  A dedicated cable box provides space for a hub, docking station, and peripheral cables, while the display's power and signal cables route cleanly through the arm to keep your workspace organized and uncluttered.
